JAVA环境部署

标签：

目录

Docker环境

安装Docker

安装docker-compose

配置docker国内镜像。推荐：毫秒镜像

防火墙设置

为了后续的测试方便，先停用防火墙，并重启docker

# 停用防火前
systemctl stop firellwd
# 重启docker
systemctl restart docker

Nacos

nacos部署文件 docker-compose-nacos.yml：

Markup 全选
version: "2"
services:
  nacos:
    image: nacos/nacos-server:v2.3.0
    container_name: nacos-server
    environment:
      - PREFER_HOST_MODE=hostname
      - MODE=standalone
      - SPRING_DATASOURCE_PLATFORM=mysql
      - MYSQL_SERVICE_HOST=192.168.110.193
      - MYSQL_SERVICE_DB_NAME=nacos_config
      - MYSQL_SERVICE_PORT=33061
      - MYSQL_SERVICE_USER=nacos
      - MYSQL_SERVICE_PASSWORD=*****
    ports:
      - "8848:8848"
      - "9555:9555"
      - "9848:9848"
      - "9849:9849"
    restart: on-failure
用技术成就未来
YES开发框架网 www.yesdotnet.com

安装并运行容器

Markup 全选
docker-compose -f docker-compose-nacos.yml up -d
用技术成就未来
YES开发框架网 www.yesdotnet.com

测试访问Nacos

访问地址：http://*:8848/nacos/

注意：网址中一定要加上/nacos，不然无法正常访问

minio

minio部署文件 docker-compose-minio.yml

Markup 全选
version: '3.4'
services:
    minio:
      image: minio/minio:RELEASE.2024-08-03T04-33-23Z
      container_name: minio
      ports:
        - "9000:9000"
        - "9009:9009"
      restart: always
      command: server /data --console-address ":9009"
      environment:
        MINIO_ROOT_USER: minio
        MINIO_ROOT_PASSWORD: minio123
      logging:
        options:
          max-size: "50M" # 最大文件上传限制
          max-file: "10"
        driver: json-file
      volumes:
        - /data/minio/data:/data # 映射文件路径
        # - ~/data/minio/etc/localtime:/etc/localtime:ro
        # - ~/data/minio/etc/timezone/timezone:/etc/timezone:ro
      healthcheck:
        test: ["CMD", "curl", "-f", "http://localhost:9000/minio/health/live"]
        interval: 30s
        timeout: 20s
        retries: 3
用技术成就未来
YES开发框架网 www.yesdotnet.com

安装并运行容器

Markup 全选
docker-compose -f docker-compose-minio.yml up -d
用技术成就未来
YES开发框架网 www.yesdotnet.com

测试访问minio

访问端口：9000

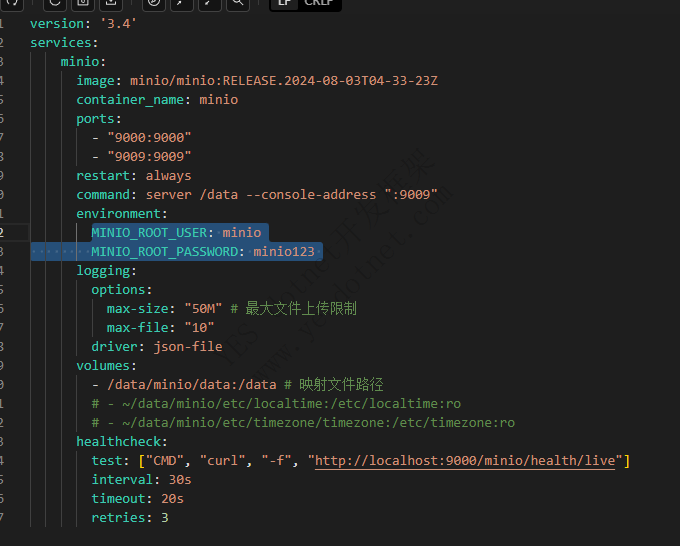

minio默认账号密码在docker-compose-minio.yml文件中配置的

rocketmq

rocketmq部署文件 docker-compose-rocketmq.yml

Markup 全选
version: '3.5'
services:
  rmqnamesrv:
    image: docker.1ms.run/foxiswho/rocketmq:server
    container_name: rmqnamesrv
    restart: always
    ports:
      - 9876:9876
    volumes:
      - /data/rocketmq/namesrv/logs:/opt/logs
      - /data/rocketmq/namesrv/store:/opt/store

  rmqbroker:
    image: docker.1ms.run/foxiswho/rocketmq:broker
    container_name: rmqbroker
    restart: always
    ports:
      - 10909:10909
      - 10911:10911
    volumes:
      - /data/rocketmq/broker/logs:/opt/logs
      - /data/rocketmq/broker/store:/opt/store
      - /data/rocketmq/broker/conf/broker.conf:/etc/rocketmq/broker.conf
    environment:
        NAMESRV_ADDR: "rmqnamesrv:9876"
        JAVA_OPTS: " -Duser.home=/opt"
        JAVA_OPT_EXT: "-server -Xms128m -Xmx128m -Xmn128m"
    command: mqbroker -c /etc/rocketmq/broker.conf
    depends_on:
      - rmqnamesrv
  rmqconsole:
    image: docker.1ms.run/styletang/rocketmq-console-ng
    container_name: rmqconsole
    restart: always
    ports:
      - 18010:8080
    environment:
        JAVA_OPTS: "-Drocketmq.namesrv.addr=rmqnamesrv:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false"
    depends_on:
      - rmqnamesrv
用技术成就未来
YES开发框架网 www.yesdotnet.com

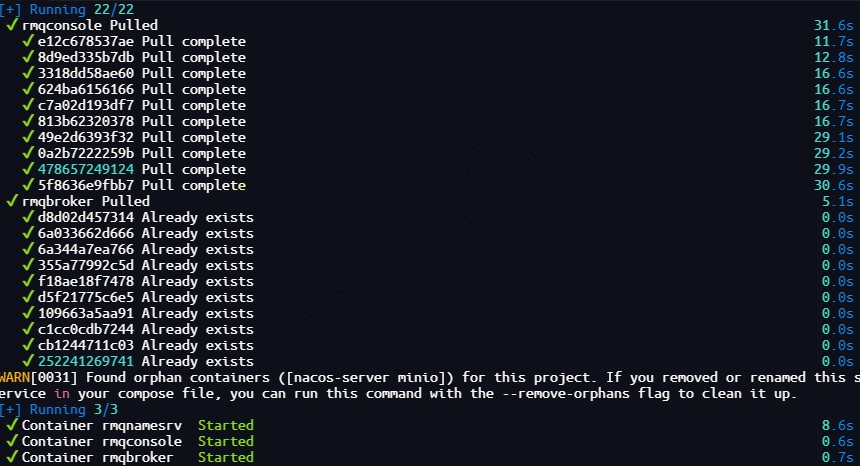

安装并启动容器

Markup 全选
docker-compose -f docker-compose-rocketmq.yml up -d
用技术成就未来
YES开发框架网 www.yesdotnet.com

JAVA环境部署

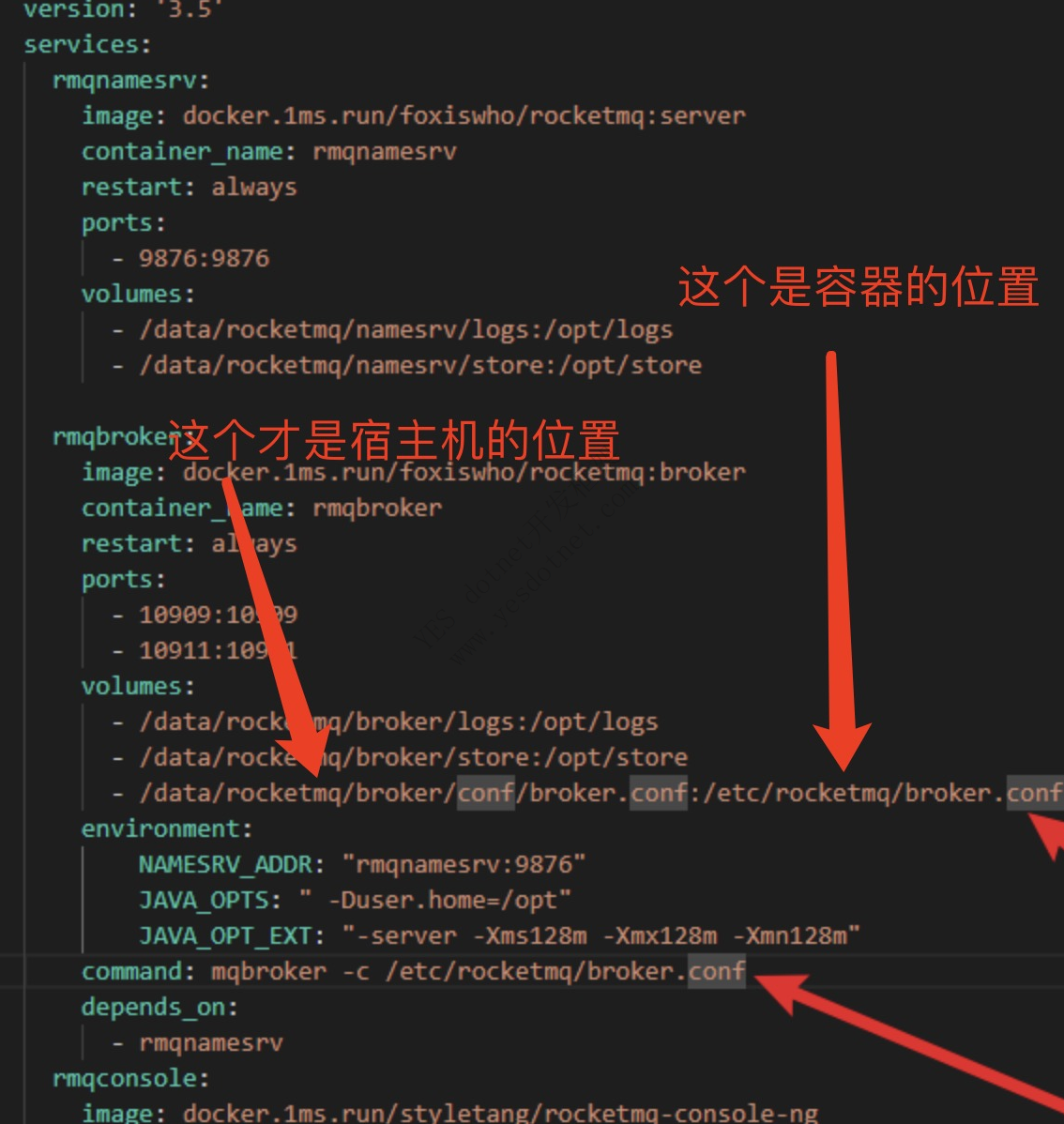

修改 rocketmq的节点配置文件

rocketmq的broker节点的配置文件

配置文件在docker-compose-rocketmq.yml中有指定

JAVA环境部署

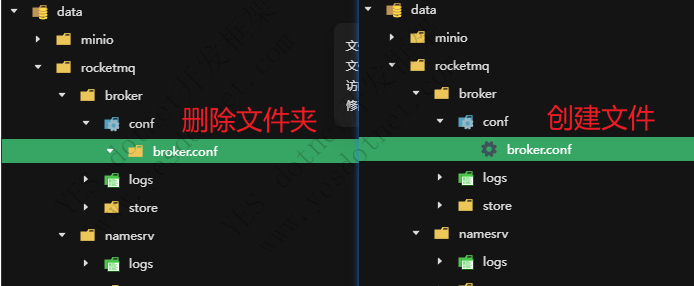

需要删除生成的broker.conf文件夹，创建broker.conf文件

JAVA环境部署

broker.conf文件夹内容

将namesrvAddr修改为rocketmq安装的服务器IP

Markup 全选
brokerClusterName=ZYCluster
#broker名字
brokerName=broker-a
#0表示Master，>0表示Slave
brokerId=0
#删除文件时间点，默认凌晨 4点
deleteWhen=04
#文件保留时间，默认 48 小时
fileReservedTime=48

brokerRole=ASYNC_MASTER
flushDiskType=ASYNC_FLUSH
#nameServer地址，分号分割
namesrvAddr=127.0.0.1:9876
defaultTopicQueueNums=4
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
listenPort=10911
#commitLog每个文件的大小默认1G
mapedFileSizeCommitLog=1073741824
#ConsumeQueue每个文件默认存30W条，根据业务情况调整
mapedFileSizeConsumeQueue=300000

brokerIP1=127.0.0.1
用技术成就未来
YES开发框架网 www.yesdotnet.com

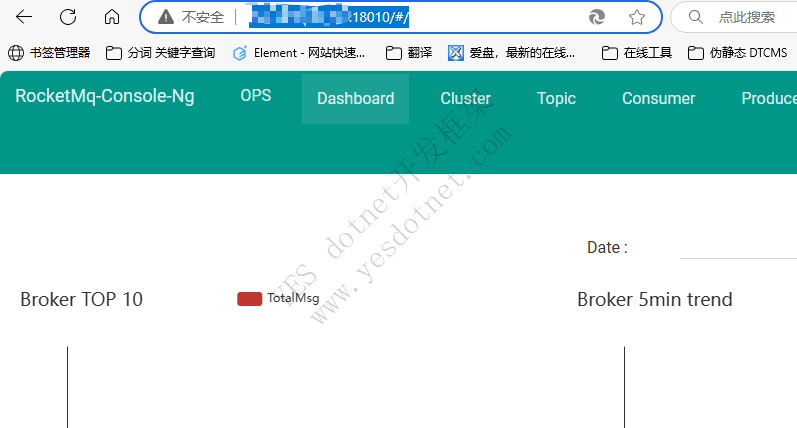

测试访问rocketmq

访问：127.0.0.1:18010

可访问rocketmq

JAVA环境部署

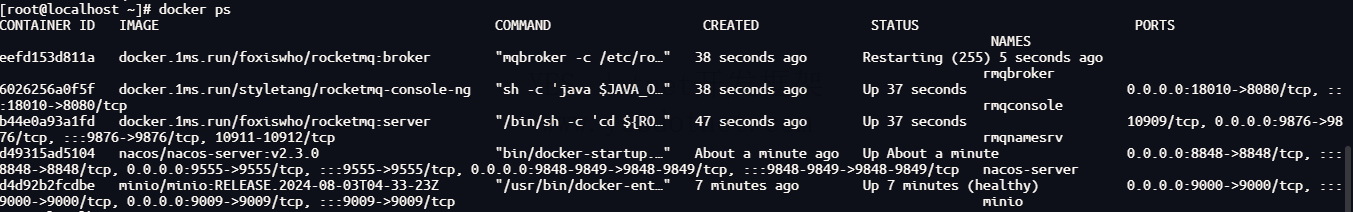

都启动后的截图

JAVA环境部署

安装nexus

docker-compose-nexus.yml文件内容

Markup 全选
version: '3.2'
services:
  nexus3:
    image: docker.1ms.run/sonatype/nexus3:3.70.4
    container_name: nexus3
    restart: always
    ports:
      - "8081:8081"
    volumes:
      - /data:/nexus-data
用技术成就未来
YES开发框架网 www.yesdotnet.com

安装容器

启用容器安装命令前，先确保 /data/nuxus文件夹存在，并且给与了足够权限

如果不给权限，容器启动会报错。

Markup 全选
docker-compose -f docker-compose-nexus.yml up -d
用技术成就未来
YES开发框架网 www.yesdotnet.com

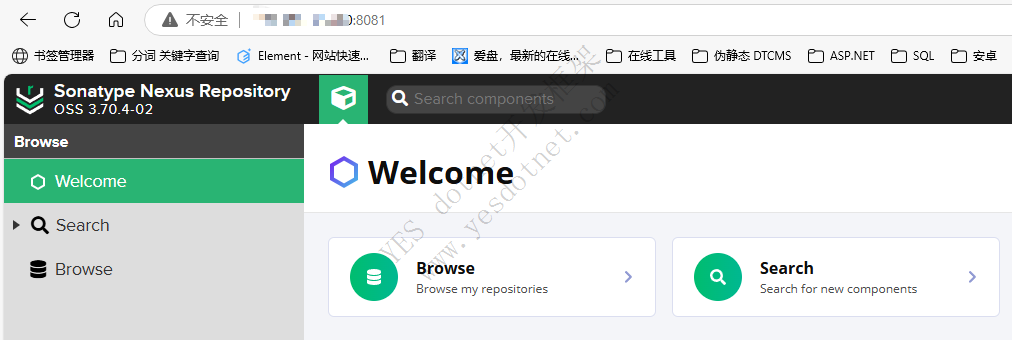

启动后，访问8081端口

JAVA环境部署

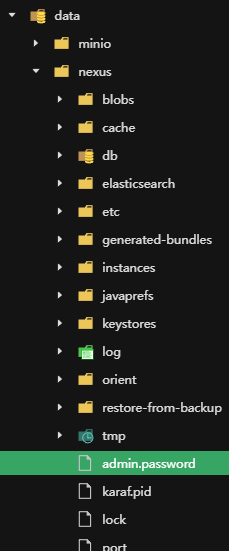

初始admin登陆密码在/data/nexus/admin.password文件中记录

JAVA环境部署



安装JDK

JDK下载地址：https://www.oracle.com/java/technologies/downloads/?er=221886#java21

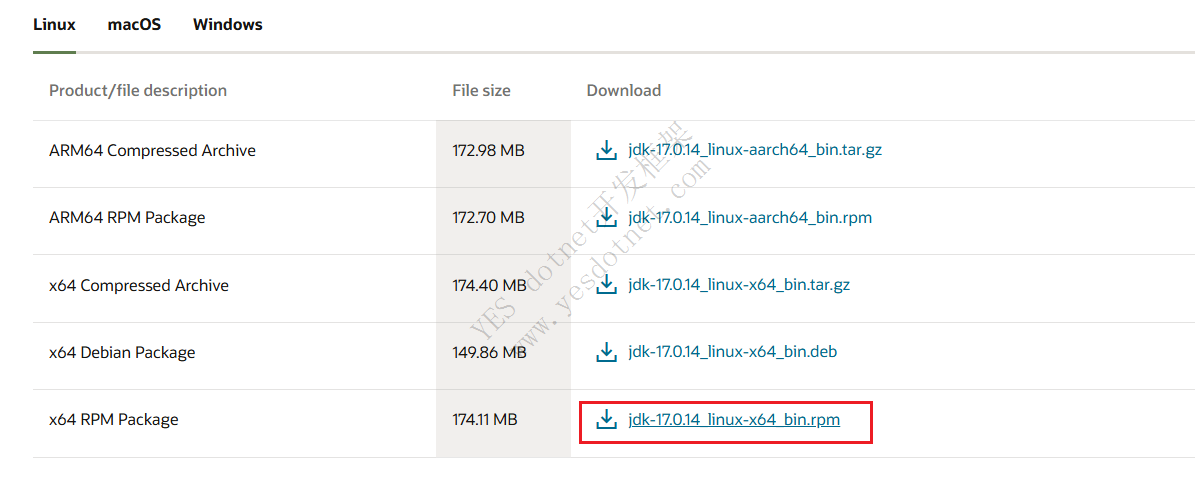

下载JDK 17

JAVA环境部署

创建目录： /usr/local/jdk/

Markup 全选
mkdir -p /usr/local/jdk
用技术成就未来
YES开发框架网 www.yesdotnet.com

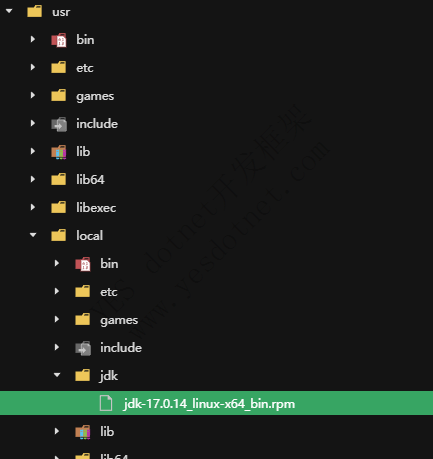

下载好的jdk-17.0.14_linux-x64_bin.rpm文件上传到 /usr/local/jdk/目录下

JAVA环境部署

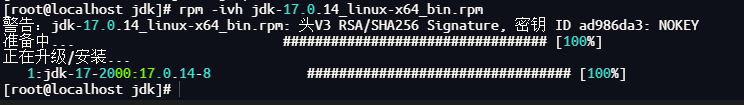

执行命令安装

Markup 全选
rpm -ivh jdk-17.0.14_linux-x64_bin.rpm
用技术成就未来
YES开发框架网 www.yesdotnet.com

JAVA环境部署

输入命令校验安装是否成功

JAVA环境部署

如果不行，尝试下面步骤

添加环境变量

修改 /etc/profile文件，末尾添加下面代码

Markup 全选
export JAVA_HOME=/usr/java/default（jdk所在目录，通过 pwd 命令查看目录）
export JRE_HOME=\$JAVA_HOME/
export PATH=$JAVA_HOME/bin:$PATH
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
用技术成就未来
YES开发框架网 www.yesdotnet.com

过source命令重新加载/etc/profile文件，使得修改后的内容在当前shell窗口有效：

Markup 全选
source /etc/profile
用技术成就未来
YES开发框架网 www.yesdotnet.com

安装Maven

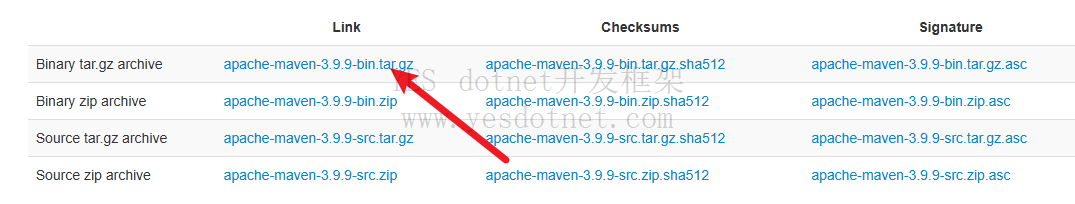

下载地址：https://maven.apache.org/download.cgi

JAVA环境部署

3.6.3版本下载地址：https://archive.apache.org/dist/maven/maven-3/3.6.3/binaries/

下载后，解压缩，apache-maven-3.6.3文件夹上传到/etc目录

设置Maven 国内镜像地址（这里采用阿里云）



配置Maven环境变量

修改文件/etc/profile 在末尾添加如下内容

Markup 全选
export JAVA_HOME=/usr/java/default（jdk所在目录，通过 pwd 命令查看目录）
export JRE_HOME=\$JAVA_HOME/
export PATH=$JAVA_HOME/bin:$PATH
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar

export MAVEN_HOME=/etc/apache-maven-3.6.3
export PATH=$PATH:$MAVEN_HOME/bin
export PATH MAVEN_HOME JAVA_HOME
用技术成就未来
YES开发框架网 www.yesdotnet.com

重载配置文件

Markup 全选
source /etc/profile
用技术成就未来
YES开发框架网 www.yesdotnet.com

输入 mvn -v查看是否正确配置

Markup 全选
mvn -v
用技术成就未来
YES开发框架网 www.yesdotnet.com

JAVA环境部署

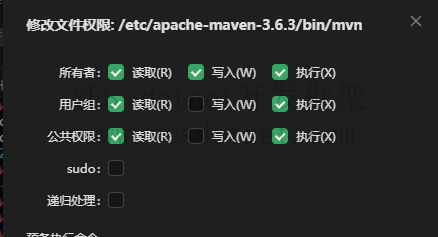

如果提示权限不够，修改appache-maven-3.6.3/bin/mvn文件权限

C# 全选
chmod 755 /etc/apache-maven-3.6.3/bin/mvn
用技术成就未来
YES开发框架网 www.yesdotnet.com

JAVA环境部署

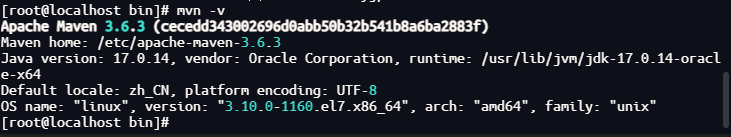

修改后，查看版本应该是：

JAVA环境部署



参考：CentOS7——安装配置Maven（Apache Maven）_centos7安装maven的setting文件-CSDN博客



安装GIT

执行命令 yum -y install git 安装git

Markup 全选
yum -y install git
用技术成就未来
YES开发框架网 www.yesdotnet.com

安装后输入 git --version 验证是否安装成功

Markup 全选
git --version
用技术成就未来
YES开发框架网 www.yesdotnet.com

JAVA环境部署

安装Jenkins流水线安装

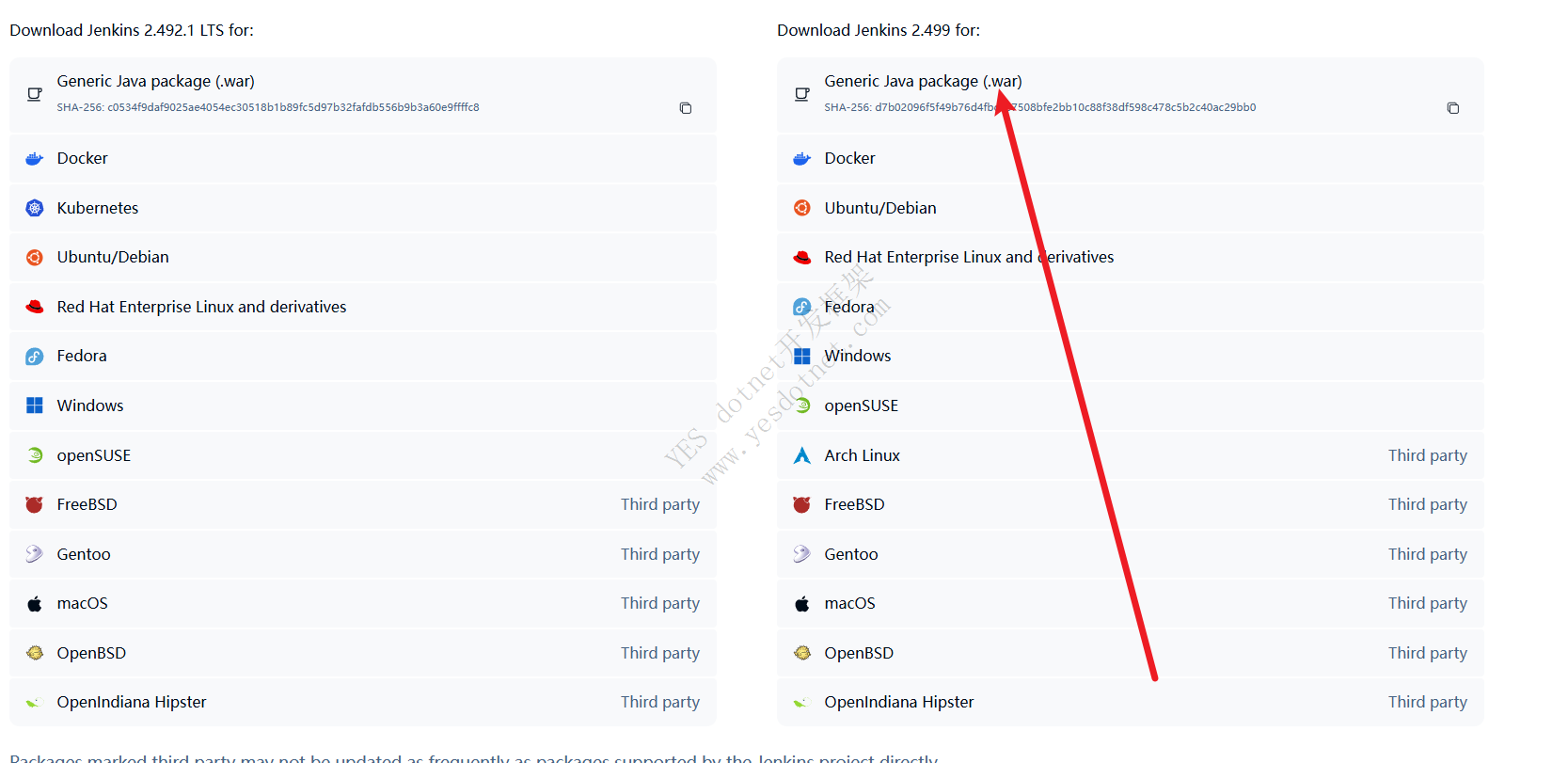

下载Jenkins.war文件，下载地址：https://www.jenkins.io/download/

JAVA环境部署

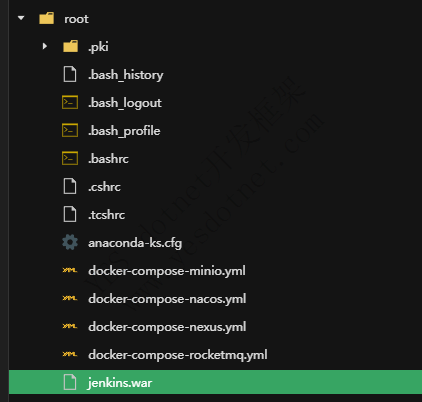

下载后，把下载的文件上传到root目录下

JAVA环境部署

root中新建脚本 start_jenkins.sh，脚本内容为

Markup 全选
nohup java -jar jenkins.war --httpPort=18888 &
用技术成就未来
YES开发框架网 www.yesdotnet.com

运行：

Markup 全选
sh start_jenkins.sh
用技术成就未来
YES开发框架网 www.yesdotnet.com

JAVA环境部署

查看nohup.out文件如果出现如下报错：

Markup 全选
Running from: /root/jenkins.war
webroot: /root/.jenkins/war
2025-02-28 02:29:38.489+0000 [id=1]	INFO	winstone.Logger#logInternal: Beginning extraction from war file
2025-02-28 02:29:40.317+0000 [id=1]	WARNING	o.e.j.ee9.nested.ContextHandler#setContextPath: Empty contextPath
2025-02-28 02:29:40.388+0000 [id=1]	INFO	org.eclipse.jetty.server.Server#doStart: jetty-12.0.16; built: 2024-12-09T21:02:54.535Z; git: c3f88bafb4e393f23204dc14dc57b042e84debc7; jvm 17.0.14+8-LTS-191
2025-02-28 02:29:40.880+0000 [id=1]	INFO	o.e.j.e.w.StandardDescriptorProcessor#visitServlet: NO JSP Support for /, did not find org.eclipse.jetty.ee9.jsp.JettyJspServlet
2025-02-28 02:29:40.945+0000 [id=1]	INFO	o.e.j.s.DefaultSessionIdManager#doStart: Session workerName=node0
2025-02-28 02:29:41.471+0000 [id=1]	INFO	hudson.WebAppMain#contextInitialized: Jenkins home directory: /root/.jenkins found at: $user.home/.jenkins
2025-02-28 02:29:41.537+0000 [id=1]	SEVERE	hudson.util.BootFailure#publish: Failed to initialize Jenkins
java.lang.RuntimeException: Fontconfig head is null, check your fonts or fonts configuration
	at java.desktop/sun.awt.FontConfiguration.getVersion(FontConfiguration.java:1269)
	at java.desktop/sun.awt.FontConfiguration.readFontConfigFile(FontConfiguration.java:224)
	at java.desktop/sun.awt.FontConfiguration.init(FontConfiguration.java:106)
	at java.desktop/sun.awt.X11FontManager.createFontConfiguration(X11FontManager.java:706)
	at java.desktop/sun.font.SunFontManager$2.run(SunFontManager.java:358)
	at java.desktop/sun.font.SunFontManager$2.run(SunFontManager.java:315)
	at java.base/java.security.AccessController.doPrivileged(AccessController.java:318)
	at java.desktop/sun.font.SunFontManager.<init>(SunFontManager.java:315)
	at java.desktop/sun.awt.FcFontManager.<init>(FcFontManager.java:35)
	at java.desktop/sun.awt.X11FontManager.<init>(X11FontManager.java:56)
Caused: java.lang.reflect.InvocationTargetException
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
	at java.base/jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:77)
	at java.base/jdk.internal.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
	at java.base/java.lang.reflect.Constructor.newInstanceWithCaller(Constructor.java:499)
	at java.base/java.lang.reflect.Constructor.newInstance(Constructor.java:480)
	at java.desktop/sun.font.FontManagerFactory$1.run(FontManagerFactory.java:85)
Caused: java.lang.InternalError
	at java.desktop/sun.font.FontManagerFactory$1.run(FontManagerFactory.java:87)
	at java.base/java.security.AccessController.doPrivileged(AccessController.java:318)
	at java.desktop/sun.font.FontManagerFactory.getInstance(FontManagerFactory.java:75)
	at java.desktop/java.awt.Font.getFont2D(Font.java:526)
	at java.desktop/java.awt.Font.getFamily(Font.java:1436)
	at java.desktop/java.awt.Font.getFamily_NoClientCode(Font.java:1410)
	at java.desktop/java.awt.Font.getFamily(Font.java:1402)
	at java.desktop/java.awt.Font.toString(Font.java:1895)
	at hudson.util.ChartUtil.<clinit>(ChartUtil.java:270)
	at hudson.WebAppMain.contextInitialized(WebAppMain.java:219)
Caused: hudson.util.AWTProblem
	at hudson.WebAppMain.contextInitialized(WebAppMain.java:220)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.callContextInitialized(ContextHandler.java:900)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.callContextInitialized(ServletContextHandler.java:596)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.contextInitialized(ContextHandler.java:837)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletHandler.initialize(ServletHandler.java:743)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.startContext(ServletContextHandler.java:364)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.startWebapp(WebAppContext.java:1358)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.startContext(WebAppContext.java:1319)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.doStartInContext(ContextHandler.java:694)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler$ScopedContext.call(ContextHandler.java:1446)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.doStart(ContextHandler.java:678)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.doStart(ServletContextHandler.java:278)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.doStart(WebAppContext.java:529)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:113)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler.lambda$doStart$0(ContextHandler.java:754)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler$ScopedContext.call(ContextHandler.java:1452)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler.doStart(ContextHandler.java:754)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler$CoreContextHandler.doStart(ContextHandler.java:2727)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:120)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.gzip.GzipHandler.doStart(GzipHandler.java:132)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Server.start(Server.java:641)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:120)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Server.doStart(Server.java:582)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//winstone.Launcher.<init>(Launcher.java:190)
	at Jenkins Main ClassLoader//winstone.Launcher.main(Launcher.java:490)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.base/java.lang.reflect.Method.invoke(Method.java:568)
	at executable.Main.main(Main.java:335)
2025-02-28 02:29:41.810+0000 [id=1]	WARNING	o.e.j.ee9.webapp.WebAppContext#doStart: Failed startup of context w.HostConfiguration$@53830483{Jenkins v2.492.1,/,file:///root/.jenkins/war/,false}{/root/.jenkins/war}
java.lang.IllegalStateException: Jenkins.instance is missing. Read the documentation of Jenkins.getInstanceOrNull to see what you are doing wrong.
	at jenkins.model.Jenkins.get(Jenkins.java:803)
	at hudson.util.BootFailure.publish(BootFailure.java:55)
	at hudson.WebAppMain.contextInitialized(WebAppMain.java:299)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.callContextInitialized(ContextHandler.java:900)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.callContextInitialized(ServletContextHandler.java:596)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.contextInitialized(ContextHandler.java:837)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletHandler.initialize(ServletHandler.java:743)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.startContext(ServletContextHandler.java:364)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.startWebapp(WebAppContext.java:1358)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.startContext(WebAppContext.java:1319)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.doStartInContext(ContextHandler.java:694)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler$ScopedContext.call(ContextHandler.java:1446)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.doStart(ContextHandler.java:678)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.doStart(ServletContextHandler.java:278)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.doStart(WebAppContext.java:529)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:113)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler.lambda$doStart$0(ContextHandler.java:754)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler$ScopedContext.call(ContextHandler.java:1452)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler.doStart(ContextHandler.java:754)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler$CoreContextHandler.doStart(ContextHandler.java:2727)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:120)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.gzip.GzipHandler.doStart(GzipHandler.java:132)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Server.start(Server.java:641)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:120)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Server.doStart(Server.java:582)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//winstone.Launcher.<init>(Launcher.java:190)
	at Jenkins Main ClassLoader//winstone.Launcher.main(Launcher.java:490)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.base/java.lang.reflect.Method.invoke(Method.java:568)
	at executable.Main.main(Main.java:335)
2025-02-28 02:29:41.817+0000 [id=1]	INFO	org.eclipse.jetty.server.Server#doStop: Stopped oejs.Server@36060e{STOPPING}[12.0.16,sto=0]
2025-02-28 02:29:41.822+0000 [id=1]	INFO	winstone.Logger#logInternal: Jetty shutdown successfully
java.io.IOException: Failed to start Jetty
	at Jenkins Main ClassLoader//winstone.Launcher.<init>(Launcher.java:194)
	at Jenkins Main ClassLoader//winstone.Launcher.main(Launcher.java:490)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.base/java.lang.reflect.Method.invoke(Method.java:568)
	at executable.Main.main(Main.java:335)
Caused by: java.lang.IllegalStateException: Jenkins.instance is missing. Read the documentation of Jenkins.getInstanceOrNull to see what you are doing wrong.
	at jenkins.model.Jenkins.get(Jenkins.java:803)
	at hudson.util.BootFailure.publish(BootFailure.java:55)
	at hudson.WebAppMain.contextInitialized(WebAppMain.java:299)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.callContextInitialized(ContextHandler.java:900)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.callContextInitialized(ServletContextHandler.java:596)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.contextInitialized(ContextHandler.java:837)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletHandler.initialize(ServletHandler.java:743)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.startContext(ServletContextHandler.java:364)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.startWebapp(WebAppContext.java:1358)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.startContext(WebAppContext.java:1319)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.doStartInContext(ContextHandler.java:694)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler$ScopedContext.call(ContextHandler.java:1446)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.doStart(ContextHandler.java:678)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.doStart(ServletContextHandler.java:278)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.doStart(WebAppContext.java:529)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:113)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler.lambda$doStart$0(ContextHandler.java:754)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler$ScopedContext.call(ContextHandler.java:1452)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler.doStart(ContextHandler.java:754)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler$CoreContextHandler.doStart(ContextHandler.java:2727)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:120)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.gzip.GzipHandler.doStart(GzipHandler.java:132)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Server.start(Server.java:641)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:120)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Server.doStart(Server.java:582)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//winstone.Launcher.<init>(Launcher.java:190)
	... 6 more
2025-02-28 02:29:41.824+0000 [id=1]	SEVERE	winstone.Logger#logInternal: Container startup failed
java.lang.IllegalStateException: Jenkins.instance is missing. Read the documentation of Jenkins.getInstanceOrNull to see what you are doing wrong.
	at jenkins.model.Jenkins.get(Jenkins.java:803)
	at hudson.util.BootFailure.publish(BootFailure.java:55)
	at hudson.WebAppMain.contextInitialized(WebAppMain.java:299)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.callContextInitialized(ContextHandler.java:900)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.callContextInitialized(ServletContextHandler.java:596)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.contextInitialized(ContextHandler.java:837)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletHandler.initialize(ServletHandler.java:743)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.startContext(ServletContextHandler.java:364)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.startWebapp(WebAppContext.java:1358)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.startContext(WebAppContext.java:1319)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.doStartInContext(ContextHandler.java:694)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler$ScopedContext.call(ContextHandler.java:1446)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler.doStart(ContextHandler.java:678)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.servlet.ServletContextHandler.doStart(ServletContextHandler.java:278)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.webapp.WebAppContext.doStart(WebAppContext.java:529)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:113)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler.lambda$doStart$0(ContextHandler.java:754)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler$ScopedContext.call(ContextHandler.java:1452)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.ContextHandler.doStart(ContextHandler.java:754)
	at Jenkins Main ClassLoader//org.eclipse.jetty.ee9.nested.ContextHandler$CoreContextHandler.doStart(ContextHandler.java:2727)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:120)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.handler.gzip.GzipHandler.doStart(GzipHandler.java:132)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.start(ContainerLifeCycle.java:169)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Server.start(Server.java:641)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.ContainerLifeCycle.doStart(ContainerLifeCycle.java:120)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Handler$Abstract.doStart(Handler.java:491)
	at Jenkins Main ClassLoader//org.eclipse.jetty.server.Server.doStart(Server.java:582)
	at Jenkins Main ClassLoader//org.eclipse.jetty.util.component.AbstractLifeCycle.start(AbstractLifeCycle.java:93)
	at Jenkins Main ClassLoader//winstone.Launcher.<init>(Launcher.java:190)
Caused: java.io.IOException: Failed to start Jetty
	at Jenkins Main ClassLoader//winstone.Launcher.<init>(Launcher.java:194)
	at Jenkins Main ClassLoader//winstone.Launcher.main(Launcher.java:490)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at java.base/jdk.internal.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:77)
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.base/java.lang.reflect.Method.invoke(Method.java:568)
	at executable.Main.main(Main.java:335)
用技术成就未来
YES开发框架网 www.yesdotnet.com

分析原因是系统中缺少字体文件

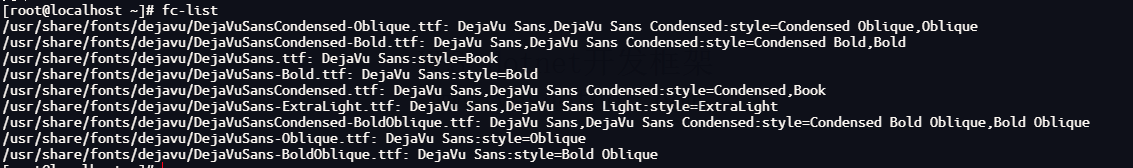

运行fc-list查看系统中字体

JAVA环境部署

如果提示fc-list命令不存在，执行命令yum install fontconfig安装

参考：https://commandnotfound.cn/linux/1/557/fc-list-%E5%91%BD%E4%BB%A4

执行命令：yum -y install fontconfig 安装 fontconfig 和相关字体包

Markup 全选
yum -y install fontconfig
用技术成就未来
YES开发框架网 www.yesdotnet.com

然后再次运行jenkins

Markup 全选
sh start_jenkins.sh
用技术成就未来
YES开发框架网 www.yesdotnet.com

完事后看nohup.out文件输出如下内容，代表启动成功

Markup 全选
Running from: /root/jenkins.war
webroot: /root/.jenkins/war
2025-02-28 03:12:08.830+0000 [id=1]	INFO	winstone.Logger#logInternal: Beginning extraction from war file
2025-02-28 03:12:08.918+0000 [id=1]	WARNING	o.e.j.ee9.nested.ContextHandler#setContextPath: Empty contextPath
2025-02-28 03:12:08.996+0000 [id=1]	INFO	org.eclipse.jetty.server.Server#doStart: jetty-12.0.16; built: 2024-12-09T21:02:54.535Z; git: c3f88bafb4e393f23204dc14dc57b042e84debc7; jvm 17.0.14+8-LTS-191
2025-02-28 03:12:09.489+0000 [id=1]	INFO	o.e.j.e.w.StandardDescriptorProcessor#visitServlet: NO JSP Support for /, did not find org.eclipse.jetty.ee9.jsp.JettyJspServlet
2025-02-28 03:12:09.554+0000 [id=1]	INFO	o.e.j.s.DefaultSessionIdManager#doStart: Session workerName=node0
2025-02-28 03:12:10.086+0000 [id=1]	INFO	hudson.WebAppMain#contextInitialized: Jenkins home directory: /root/.jenkins found at: $user.home/.jenkins
2025-02-28 03:12:10.219+0000 [id=1]	INFO	o.e.j.s.handler.ContextHandler#doStart: Started oeje9n.ContextHandler$CoreContextHandler@30b34287{Jenkins v2.492.1,/,b=file:///root/.jenkins/war/,a=AVAILABLE,h=oeje9n.ContextHandler$CoreContextHandler$CoreToNestedHandler@5489c777{STARTED}}
2025-02-28 03:12:10.232+0000 [id=1]	INFO	o.e.j.server.AbstractConnector#doStart: Started ServerConnector@43c67247{HTTP/1.1, (http/1.1)}{0.0.0.0:18888}
2025-02-28 03:12:10.244+0000 [id=1]	INFO	org.eclipse.jetty.server.Server#doStart: Started oejs.Server@147ed70f{STARTING}[12.0.16,sto=0] @2075ms
2025-02-28 03:12:10.245+0000 [id=26]	INFO	winstone.Logger#logInternal: Winstone Servlet Engine running: controlPort=disabled
2025-02-28 03:12:10.418+0000 [id=25]	INFO	jenkins.model.Jenkins#<init>: Starting version 2.492.1
2025-02-28 03:12:10.517+0000 [id=34]	INFO	jenkins.InitReactorRunner$1#onAttained: Started initialization
2025-02-28 03:12:10.531+0000 [id=44]	INFO	jenkins.InitReactorRunner$1#onAttained: Listed all plugins
2025-02-28 03:12:11.565+0000 [id=46]	INFO	jenkins.InitReactorRunner$1#onAttained: Prepared all plugins
2025-02-28 03:12:11.570+0000 [id=46]	INFO	jenkins.InitReactorRunner$1#onAttained: Started all plugins
2025-02-28 03:12:11.572+0000 [id=37]	INFO	jenkins.InitReactorRunner$1#onAttained: Augmented all extensions
2025-02-28 03:12:11.750+0000 [id=37]	INFO	jenkins.InitReactorRunner$1#onAttained: System config loaded
2025-02-28 03:12:11.751+0000 [id=35]	INFO	jenkins.InitReactorRunner$1#onAttained: System config adapted
2025-02-28 03:12:11.751+0000 [id=45]	INFO	jenkins.InitReactorRunner$1#onAttained: Loaded all jobs
2025-02-28 03:12:11.753+0000 [id=37]	INFO	jenkins.InitReactorRunner$1#onAttained: Configuration for all jobs updated
2025-02-28 03:12:11.776+0000 [id=60]	INFO	hudson.util.Retrier#start: Attempt #1 to do the action check updates server
2025-02-28 03:12:12.116+0000 [id=44]	INFO	jenkins.install.SetupWizard#init:

*************************************************************
*************************************************************
*************************************************************

Jenkins initial setup is required. An admin user has been created and a password generated.
Please use the following password to proceed to installation:

0fb24da955ae480988d6bad3b5803c56

This may also be found at: /root/.jenkins/secrets/initialAdminPassword

*************************************************************
*************************************************************
*************************************************************

2025-02-28 03:12:18.247+0000 [id=44]	INFO	jenkins.InitReactorRunner$1#onAttained: Completed initialization
2025-02-28 03:12:18.258+0000 [id=25]	INFO	hudson.lifecycle.Lifecycle#onReady: Jenkins is fully up and running
用技术成就未来
YES开发框架网 www.yesdotnet.com

访问Jenkins

jenkins访问端口：18888 (在start_jenkins.sh文件中配置的端口)

JAVA环境部署

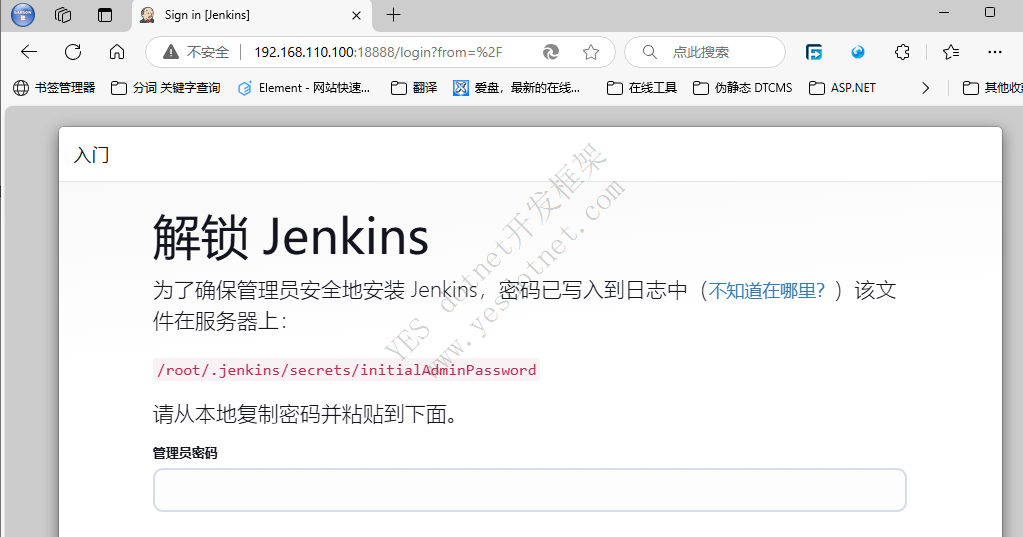

初始密码，在nohup.out文件中

JAVA环境部署



打开如果提示报错

JAVA环境部署

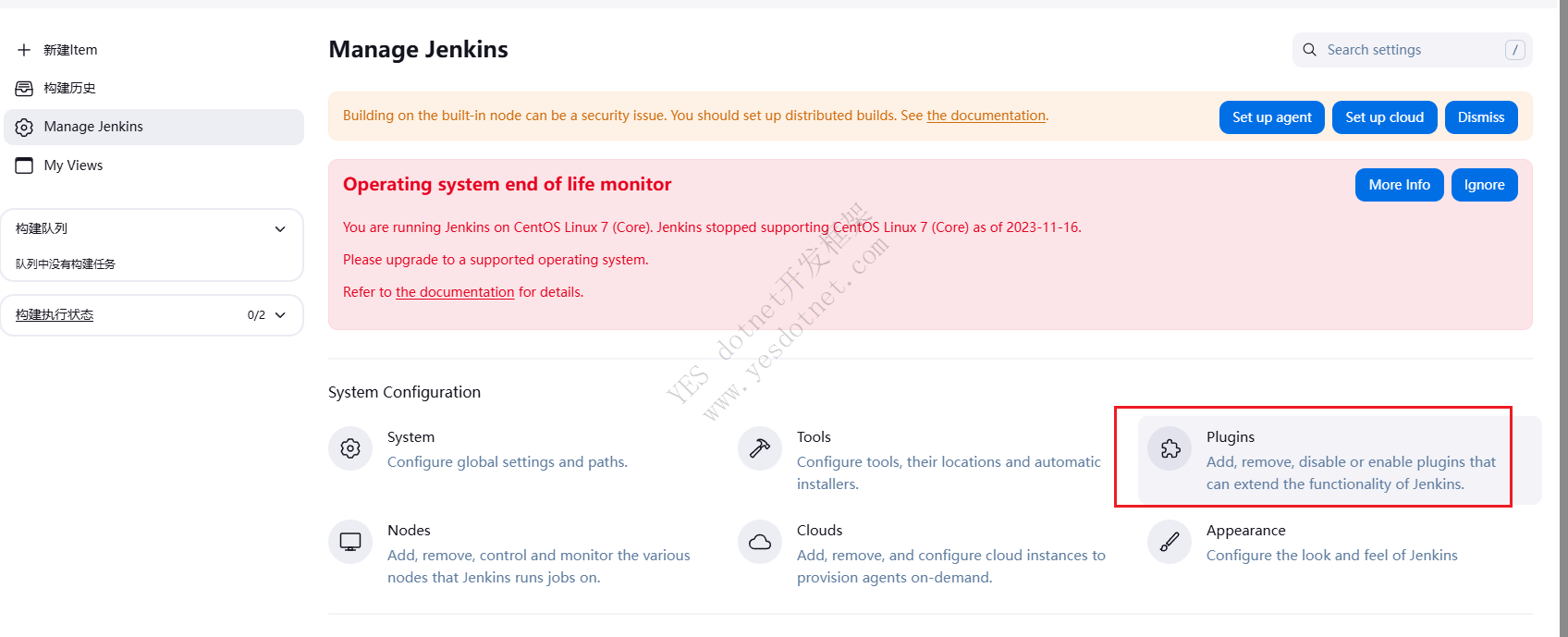

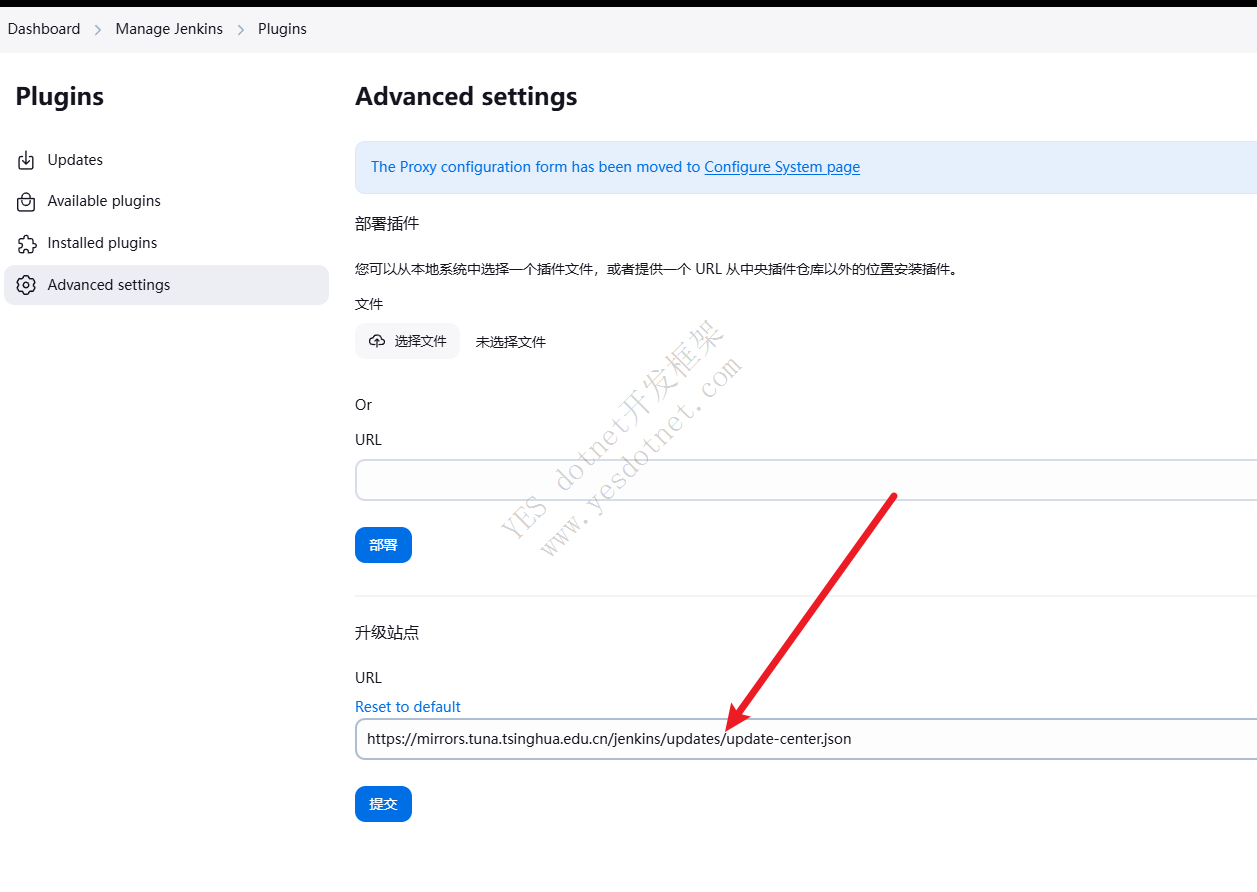

进入插件管理界面的 Advanced settings 高级设置面板，在该面板中找到 Update Size 更新升级站点，将其中 URL，即 Jenkins 插件下载源修改更换为国内镜像，然后点击提交保存

Markup 全选
https://mirrors.tuna.tsinghua.edu.cn/jenkins/updates/update-center.json
用技术成就未来
YES开发框架网 www.yesdotnet.com

JAVA环境部署

JAVA环境部署



https://blog.csdn.net/weixin_53742691/article/details/139269989

Jenkins流水线配置

1. 配置JDK 1.8

 由于jenkins需要jdk17，而项目的jdk是1.8，因此，需要在jenkins里面配置jdk1.8的信息

下载JDK 1.8 ，对应java 8u**版本 下载地址： https://repo.huaweicloud.com/java/jdk/8u202-b08/

JAVA环境部署

下载后，上传到/etc目录

JAVA环境部署

输入命令解压文件：

Markup 全选
tar -zxvf jdk-8u202-linux-x64.tar.gz
用技术成就未来
YES开发框架网 www.yesdotnet.com

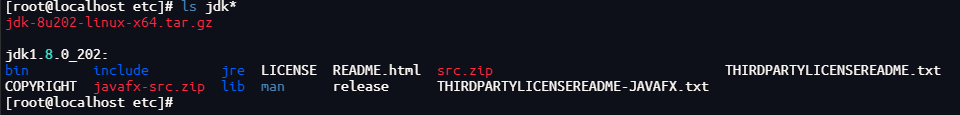

解压后：

JAVA环境部署

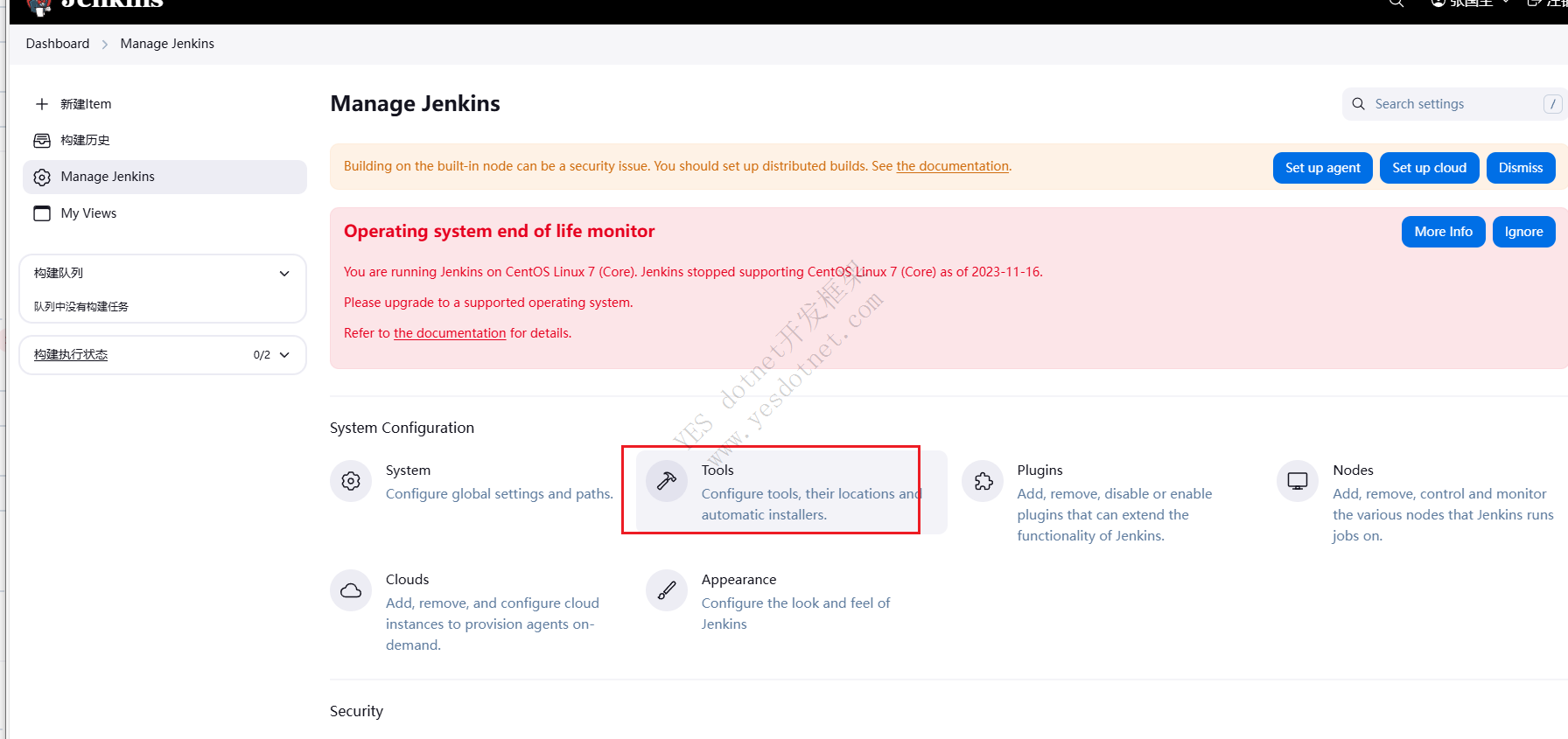

打开Manage Jenkins Tools配置页面

JAVA环境部署

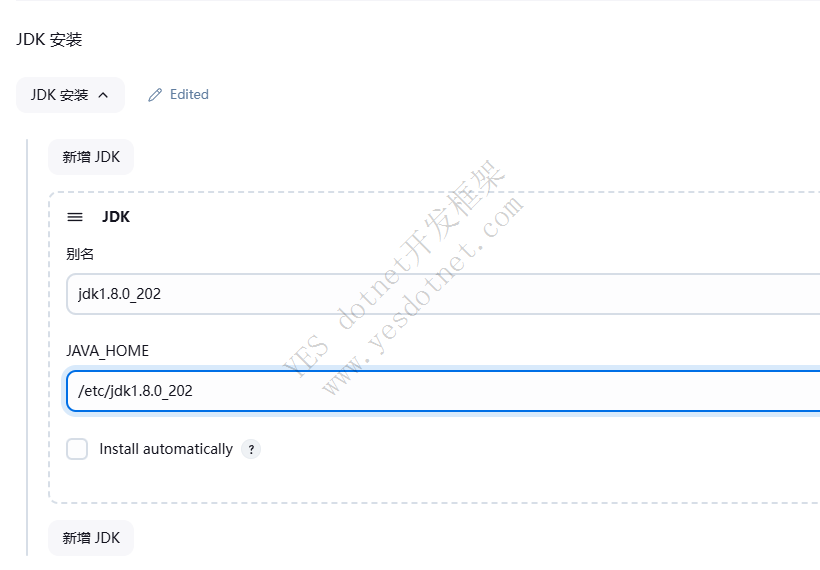

配置JDK，JAVA_HOME需要和自己解压的文件名保持一致

JAVA环境部署

2. 配置maven信息

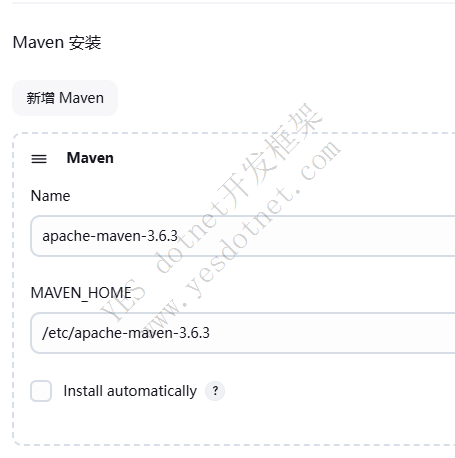

进入配置-工具，配置maven信息

JAVA环境部署





















版权声明：本文为YES开发框架网发布内容,转载请附上原文出处连接
post 张国生
上一篇：git批量克隆仓库代码以及批量上传
下一篇：Jenkins工具配置
评论列表
发表评论
评论内容
昵称：
关联文章
JAVA环境部署
YESWEB项目 生产环境部署
JAVA Spring BootURL 忽略大小写
热更新部署
CentOS安装java
java项目集成nacos，实现配置加载以及服务子发现
mysql服务器端运行环境要求
Nginx部署
.NET Core 项目windows server中部署
JAVA JDK官方下载地址
JAVA SAP JCO集成
《步步入门》 .NET 6 部署到Linux
Elasticsearch使用系列-ES简介和环境搭建
vue 编译不同环境
.net Core项目 IIS部署运行异常信息输出
YES-CMS 内容管理系统 快速发布与部署
YESWEB项目部署
监察易部署
VScode配置Python开发环境
RabbitMQ服务器环境搭建方法（Windows）
站长推荐
YES-CMS内容管理系统
winformC/S开发框架
热门标签
.NET Core .NET Reactor ag-grid api安全 ASP.NET Core C#DLL加密 C#播放声音 C#代码混淆 C#代码加密 ChromeDriver DateTime DBeaver devexpress devTool DLL混淆 edge.js EF EFCore Electron element-ui el-form el-table excel FastReport FileStream FolderBrowerDialog FolderSelectDialog form提交 git gridcontrol gridview input javascript json字符串 JS转换对象JSON jwt JWT授权 linq log Math mitmproxy MVC MySQL Navicat nginx node_modules NSwag Nuget Nuget镜像 number pyinstaller python pythoncom python爬虫 python抓包 pywin32 redis Requests-html RestSharp Selenium sql SQL Server Swagger Visual Studio VSCode vue VueRouter vue路由 VUE页面通讯 Webpack Windows服务 winform wmi xlrd yaml YESWEB开发框架 白象 表单提交 播放声音 打开URL 代码混淆 弹窗提醒 对象转换 分布式 公共字典 机器码 静态资源 开发指南 路由参数 密钥 配置文件 权限 人工智能 任务 任务调度 日期间隔 日志 日志记录 省市区 授权验证 数据库 四舍五入 文案 文件读取 文件夹选择 文件目录选择 问题排查 行政区域数据 页面通讯 中间件
联系我们
联系电话：15090125178(微信同号)
电子邮箱：garson_zhang@163.com
在线客服
站长微信二维码
微信二维码
