Jenkins工具配置

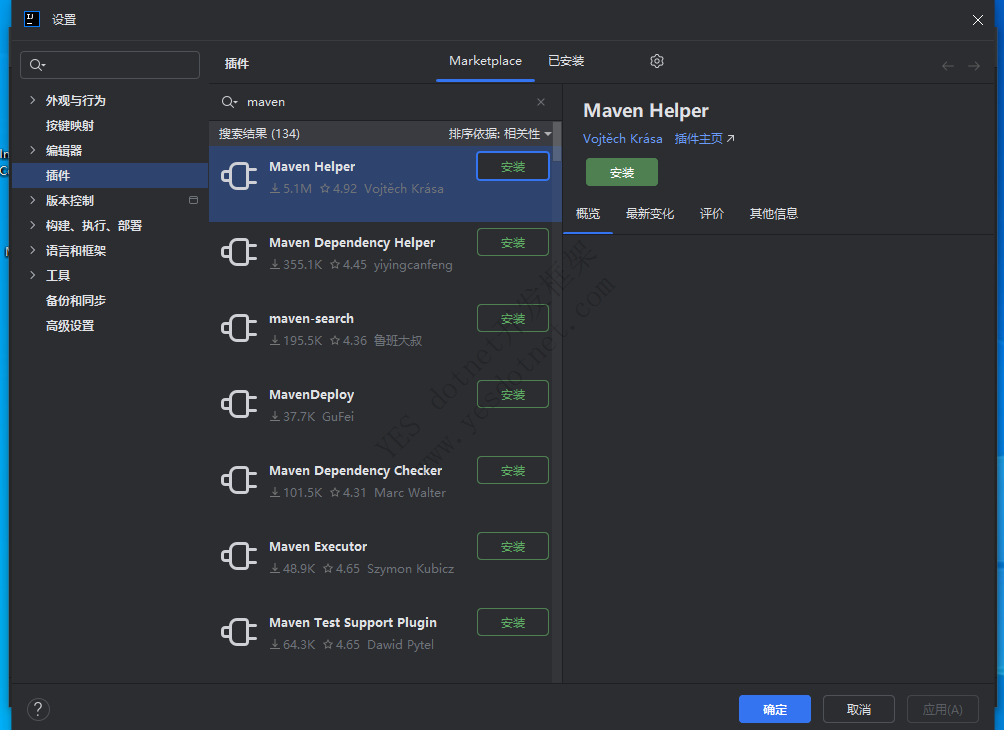

安装maven helper插件

Jenkins工具配置

配置Maven

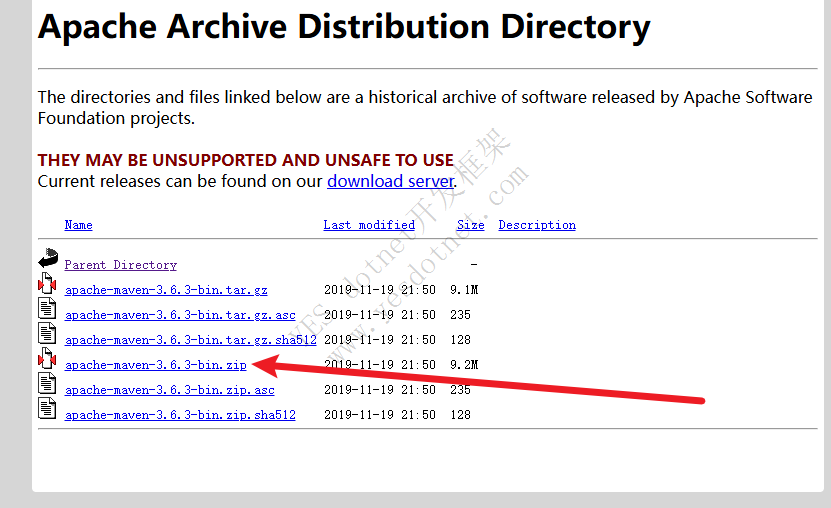

maven下载地址:https://archive.apache.org/dist/maven/maven-3/

当前项目用的是3.6.3版本:https://archive.apache.org/dist/maven/maven-3/3.6.3/binaries/

windows系统下载 apache-maven-3.6.3-bin.zip

Jenkins工具配置

下载后解压。配置IDEA工具

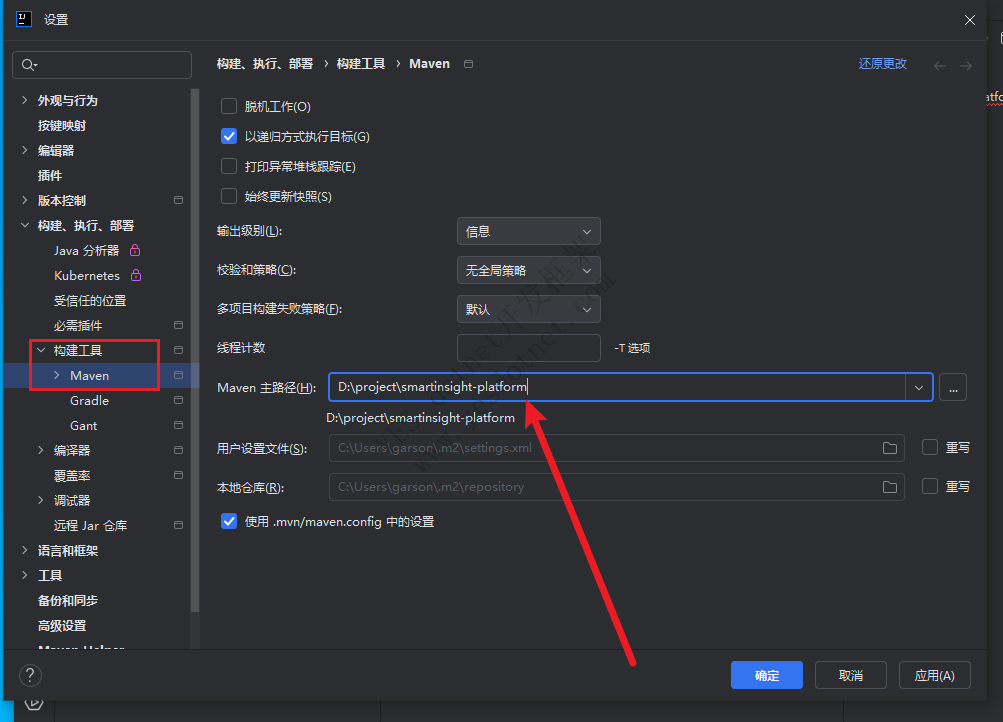

文件→设置 / 构建、执行、部署 → 构建工具→Maven→Maven主路径

Jenkins工具配置



设置maven的settings.xml

路径 C:\Users\garson\.m2\中新建settings.xml文件

文件内容:

C# 全选
<?xml version="1.0" encoding="UTF-8"?>

<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
-->

<!--
 | This is the configuration file for Maven. It can be specified at two levels:
 |
 |  1. User Level. This settings.xml file provides configuration for a single user,
 |                 and is normally provided in ${user.home}/.m2/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -s /path/to/user/settings.xml
 |
 |  2. Global Level. This settings.xml file provides configuration for all Maven
 |                 users on a machine (assuming they're all using the same Maven
 |                 installation). It's normally provided in
 |                 ${maven.conf}/settings.xml.
 |
 |                 NOTE: This location can be overridden with the CLI option:
 |
 |                 -gs /path/to/global/settings.xml
 |
 | The sections in this sample file are intended to give you a running start at
 | getting the most out of your Maven installation. Where appropriate, the default
 | values (values used when the setting is not specified) are provided.
 |
 |-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
  <!-- localRepository
   | The path to the local repository maven will use to store artifacts.
   |
   | Default: ${user.home}/.m2/repository
  <localRepository>/path/to/local/repo</localRepository>
  -->

  <!-- interactiveMode
   | This will determine whether maven prompts you when it needs input. If set to false,
   | maven will use a sensible default value, perhaps based on some other setting, for
   | the parameter in question.
   |
   | Default: true
  <interactiveMode>true</interactiveMode>
  -->

  <!-- offline
   | Determines whether maven should attempt to connect to the network when executing a build.
   | This will have an effect on artifact downloads, artifact deployment, and others.
   |
   | Default: false
  <offline>false</offline>
  -->

  <!-- pluginGroups
   | This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.
   | when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers
   | "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.
   |-->
  <pluginGroups>
    <!-- pluginGroup
     | Specifies a further group identifier to use for plugin lookup.
    <pluginGroup>com.your.plugins</pluginGroup>
    -->
  </pluginGroups>

  <!-- proxies
   | This is a list of proxies which can be used on this machine to connect to the network.
   | Unless otherwise specified (by system property or command-line switch), the first proxy
   | specification in this list marked as active will be used.
   |-->
  <proxies>
    <!-- proxy
     | Specification for one proxy, to be used in connecting to the network.
     |
    <proxy>
      <id>optional</id>
      <active>true</active>
      <protocol>http</protocol>
      <username>proxyuser</username>
      <password>proxypass</password>
      <host>proxy.host.net</host>
      <port>80</port>
      <nonProxyHosts>local.net|some.host.com</nonProxyHosts>
    </proxy>
    -->
  </proxies>

  <!-- servers
   | This is a list of authentication profiles, keyed by the server-id used within the system.
   | Authentication profiles can be used whenever maven must make a connection to a remote server.
   |-->

  <!-- mirrors
   | This is a list of mirrors to be used in downloading artifacts from remote repositories.
   |
   | It works like this: a POM may declare a repository to use in resolving certain artifacts.
   | However, this repository may have problems with heavy traffic at times, so people have mirrored
   | it to several places.
   |
   | That repository definition will have a unique id, so we can create a mirror reference for that
   | repository, to be used as an alternate download site. The mirror site will be the preferred
   | server for that repository.
   |-->

  <!-- profiles
   | This is a list of profiles which can be activated in a variety of ways, and which can modify
   | the build process. Profiles provided in the settings.xml are intended to provide local machine-
   | specific paths and repository locations which allow the build to work in the local environment.
   |
   | For example, if you have an integration testing plugin - like cactus - that needs to know where
   | your Tomcat instance is installed, you can provide a variable here such that the variable is
   | dereferenced during the build process to configure the cactus plugin.
   |
   | As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles
   | section of this document (settings.xml) - will be discussed later. Another way essentially
   | relies on the detection of a system property, either matching a particular value for the property,
   | or merely testing its existence. Profiles can also be activated by JDK version prefix, where a
   | value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.
   | Finally, the list of active profiles can be specified directly from the command line.
   |
   | NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact
   |       repositories, plugin repositories, and free-form properties to be used as configuration
   |       variables for plugins in the POM.
   |
   |-->
  <profiles>
    <!-- profile
     | Specifies a set of introductions to the build process, to be activated using one or more of the
     | mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>
     | or the command line, profiles have to have an ID that is unique.
     |
     | An encouraged best practice for profile identification is to use a consistent naming convention
     | for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.
     | This will make it more intuitive to understand what the set of introduced profiles is attempting
     | to accomplish, particularly when you only have a list of profile id's for debug.
     |
     | This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.
    <profile>
      <id>jdk-1.4</id>

      <activation>
        <jdk>1.4</jdk>
      </activation>

      <repositories>
        <repository>
          <id>jdk14</id>
          <name>Repository for JDK 1.4 builds</name>
          <url>http://www.myhost.com/maven/jdk14</url>
          <layout>default</layout>
          <snapshotPolicy>always</snapshotPolicy>
        </repository>
      </repositories>
    </profile>
    -->

    <!--
     | Here is another profile, activated by the system property 'target-env' with a value of 'dev',
     | which provides a specific path to the Tomcat instance. To use this, your plugin configuration
     | might hypothetically look like:
     |
     | ...
     | <plugin>
     |   <groupId>org.myco.myplugins</groupId>
     |   <artifactId>myplugin</artifactId>
     |
     |   <configuration>
     |     <tomcatLocation>${tomcatPath}</tomcatLocation>
     |   </configuration>
     | </plugin>
     | ...
     |
     | NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to
     |       anything, you could just leave off the <value/> inside the activation-property.
     |
    <profile>
      <id>env-dev</id>

      <activation>
        <property>
          <name>target-env</name>
          <value>dev</value>
        </property>
      </activation>

      <properties>
        <tomcatPath>/path/to/tomcat/instance</tomcatPath>
      </properties>
    </profile>
    -->
	<profile>
      <id>jenkins</id>
      <activation>
        <activeByDefault>true</activeByDefault> <!-- change this to false, if you don't like to have it on per default -->
      </activation>
      <repositories>
        <repository>
            <id>maven-public</id>
            <url>http://127.0.0.1:8081/repository/maven-public/</url>
        </repository>
      </repositories>
      <pluginRepositories>
        <pluginRepository>
            <id>maven-releases</id>
            <url>http://127.0.0.1:8081/repository/maven-releases/</url>
            <snapshots>
                <enabled>true</enabled>
                <updatePolicy>always</updatePolicy>
            </snapshots>
        </pluginRepository>
          <pluginRepository>
              <id>maven-snapshots</id>
              <url>http://127.0.0.1:8081/repository/maven-snapshots/</url>
              <snapshots>
                  <enabled>true</enabled>
                  <updatePolicy>always</updatePolicy>
              </snapshots>
          </pluginRepository>
      </pluginRepositories>
    </profile>
  </profiles>
  <servers>
    <server>
      <id>maven-releases</id>
      <username>user</username>
      <password>123456</password>
    </server>
    <server>
      <id>maven-snapshots</id>
      <username>user</username>
      <password>123456</password>
    </server>
  </servers>
  <mirrors>
    <mirror>
      <id>repo.jenkins-ci.org</id>
      <url>https://repo.jenkins-ci.org/public/</url>
      <mirrorOf>m.g.o-public</mirrorOf>
    </mirror>
	 <mirror>
		<id>maven-public</id>
        <!-- <url>http://maven.aihomcloud.com/repository/maven-public/</url> -->
        <url>http://127.0.0.1:8081/repository/maven-public/</url>
       <mirrorOf>maven-public</mirrorOf>
    </mirror>
	 <mirror>
      <id>nexus-aliyun</id>
      <mirrorOf>central</mirrorOf>
      <name>Nexus aliyun</name>
      <url>http://maven.aliyun.com/nexus/content/groups/public</url>
    </mirror>
     <mirror>
      <id>nexus-repo1</id>
      <mirrorOf>central</mirrorOf>
      <name>Nexus aliyun</name>
      <url>https://repo1.maven.org/maven2</url>
    </mirror>
  </mirrors>
  <!-- activeProfiles
   | List of profiles that are active for all builds.
   |
  <activeProfiles>
    <activeProfile>alwaysActiveProfile</activeProfile>
    <activeProfile>anotherAlwaysActiveProfile</activeProfile>
  </activeProfiles>
  -->
</settings>







语言级别设置

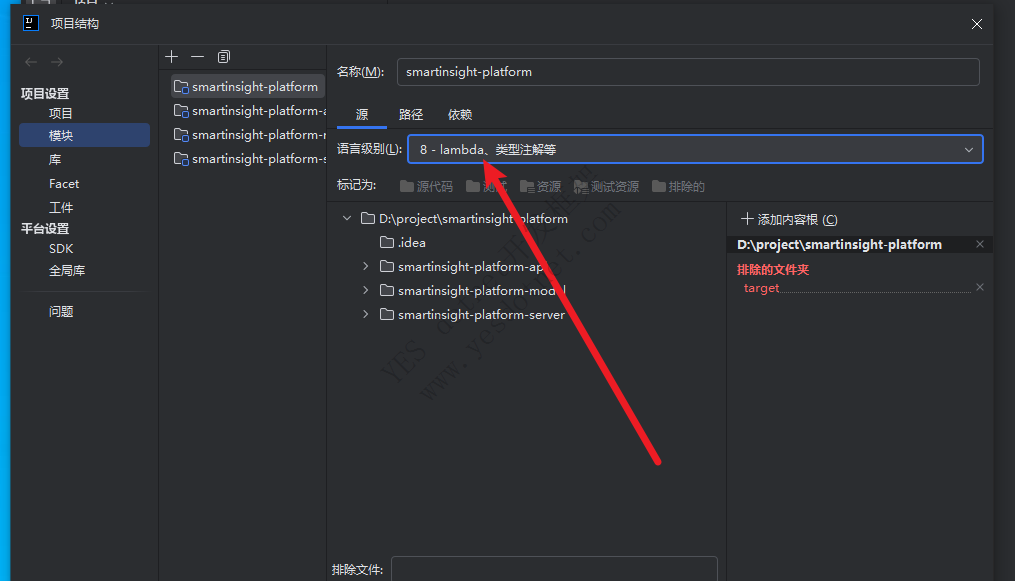

文件→项目结构 / 模块→ 语言级别 设置为 8,(每个模块都要设置

Jenkins工具配置



项目运行

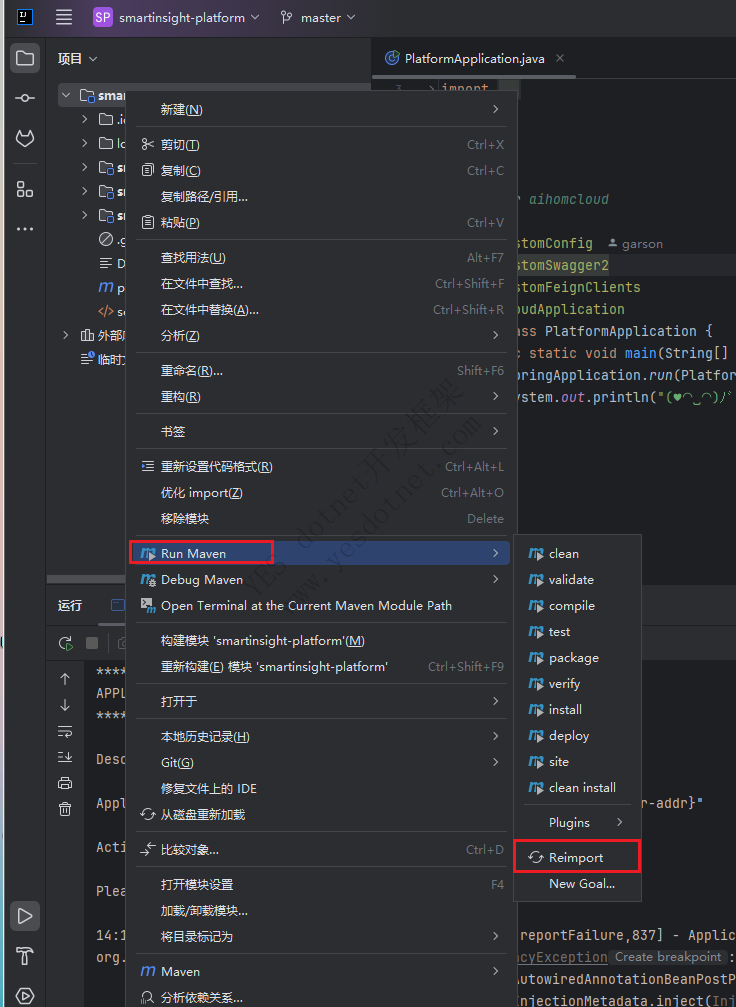

1. 选中项目,右键菜单 → Run Maven → Reimport 导入依赖

Jenkins工具配置

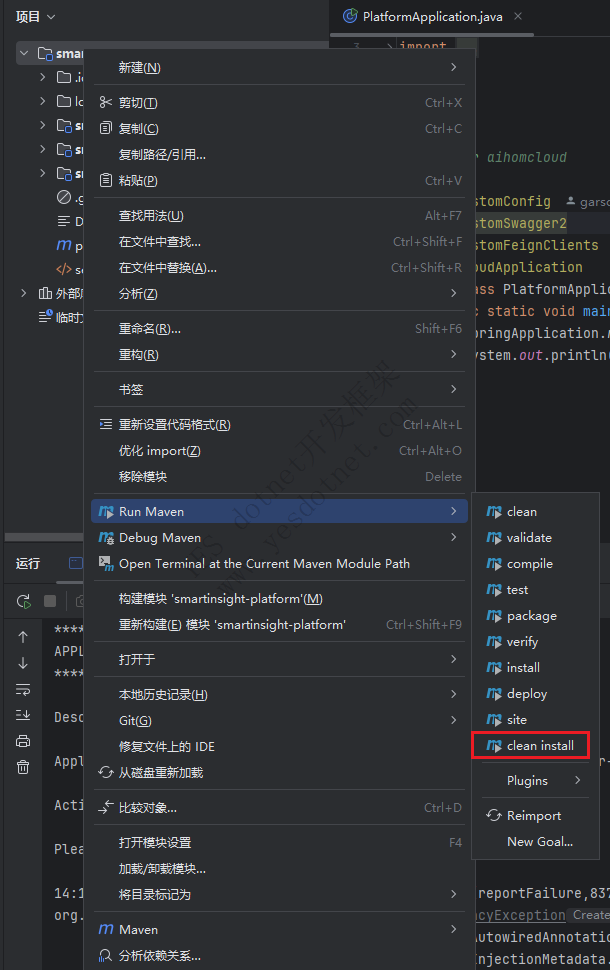

2、项目编译安装到本地maven仓库

项目引入依赖成功后,同样操作,选中“clean install”,将项目编译安装到本地maven仓库,(项目分离的情况,需要将项目install后,引入该项目的目标项目才会更新相应的依赖)

Jenkins工具配置

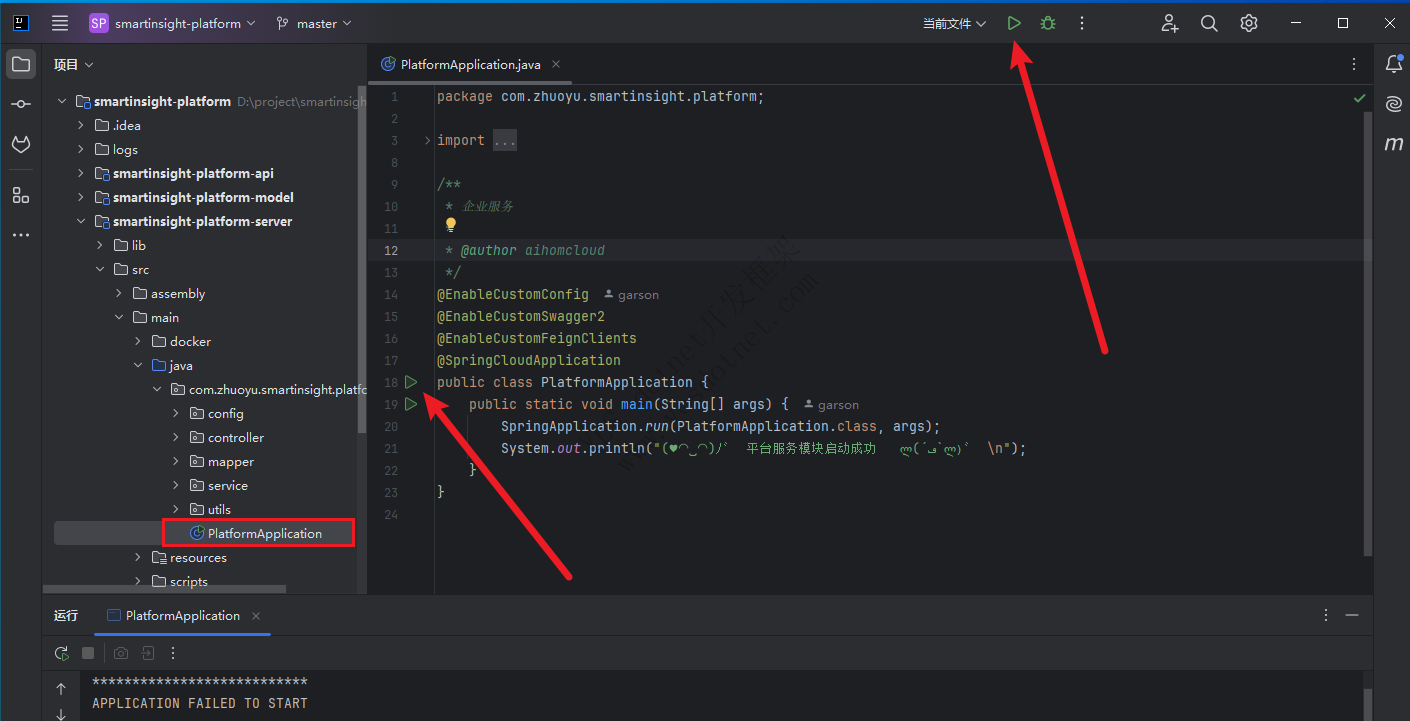

3、运行项目

在server项目(根据开发喜好决定,CSRM系统中默认server为主应用项目)中找到Application类,点击绿色三角形符号按钮,运行项目

Jenkins工具配置

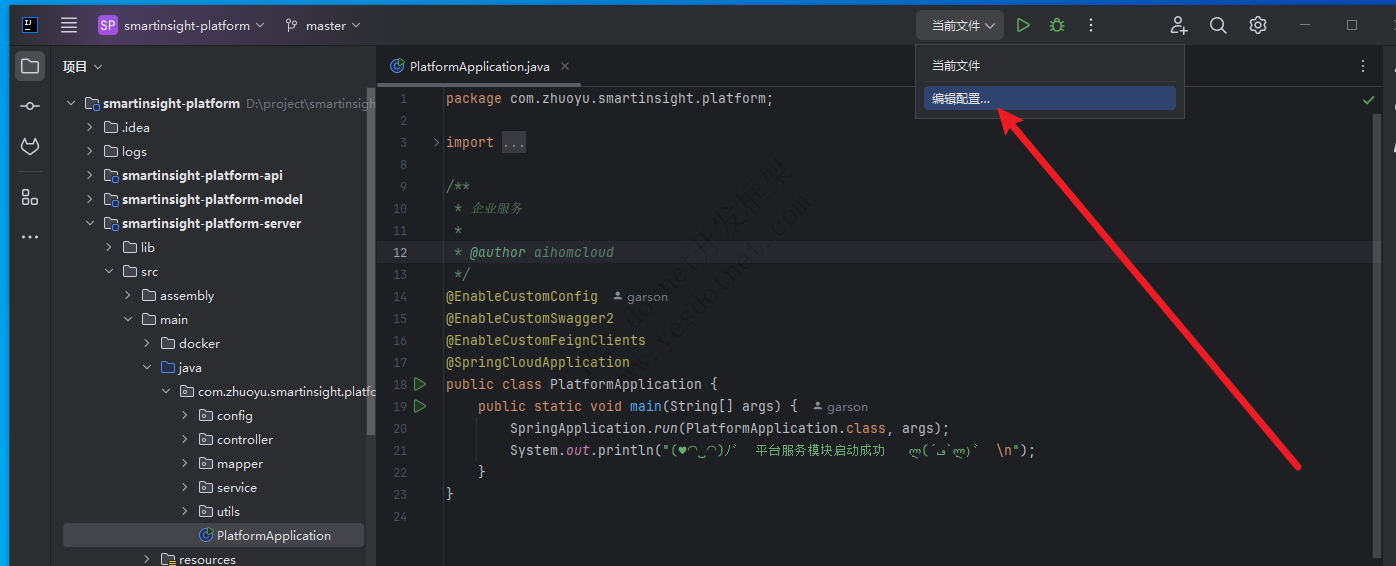

4、在Project Configurations中出现当前项目的配置

项目没有配置运行环境变量,会导致项目启动失败,在项目bootstrap.yml中存在默认必须的环境变量,需要配置才能正常运行。

Jenkins工具配置

Jenkins工具配置

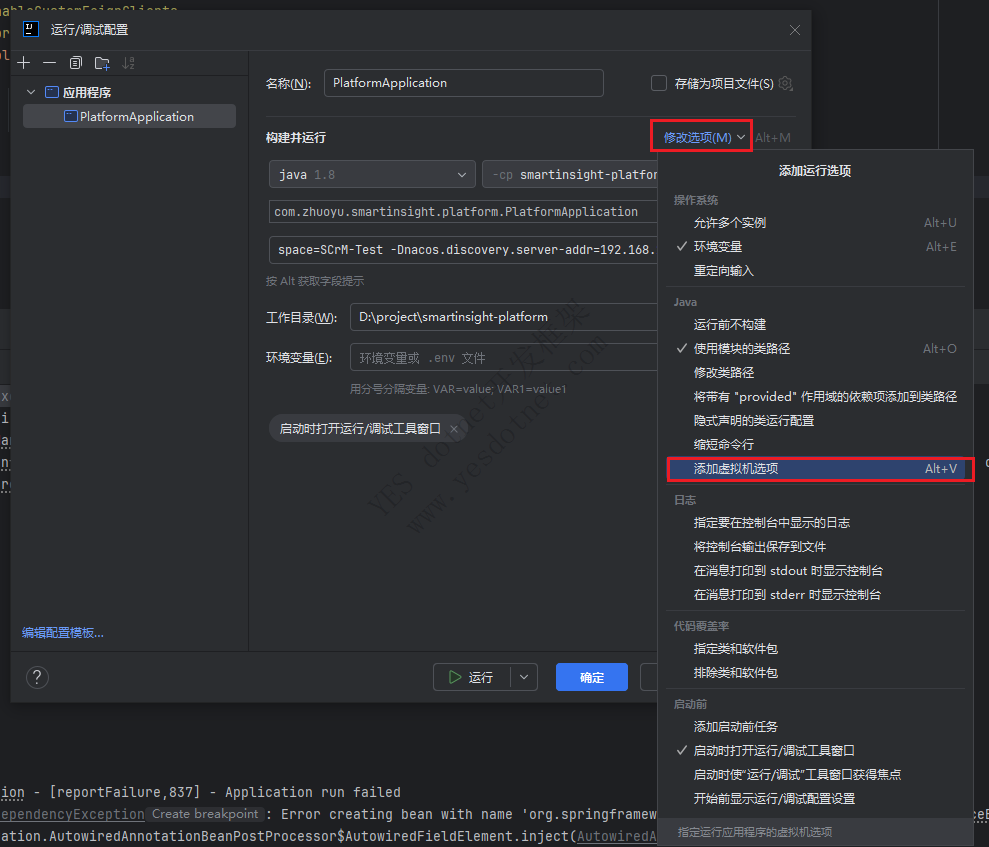

①添加 Add VM options选项,配置JVM配置参数

Jenkins工具配置

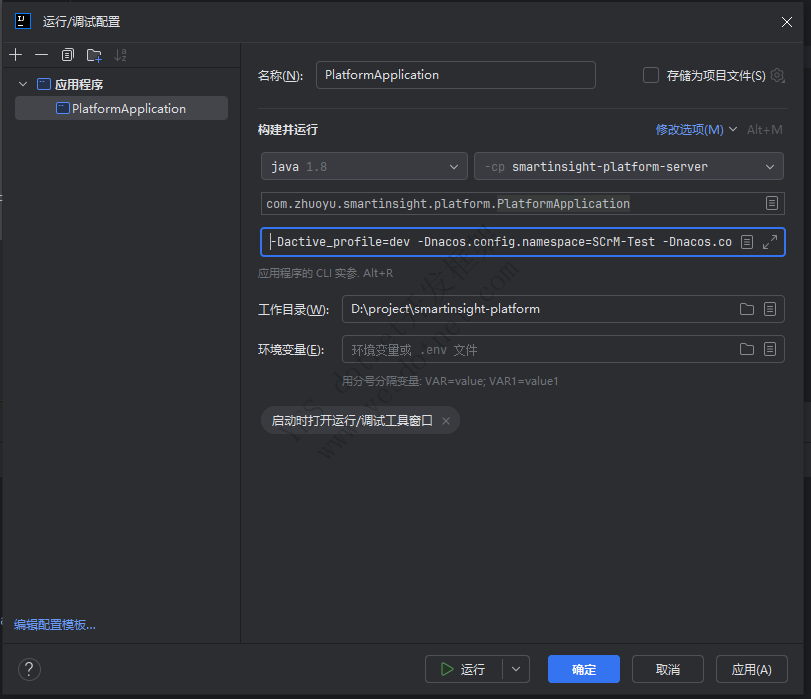

②添加nacos环境配置

Jenkins工具配置

名称:PlatformApplication

虚拟机选项:-Dactive_profile=dev -Dnacos.config.namespace=SCrM-Test -Dnacos.config.server-addr=127.0.0.1:8848 -Dnacos.discovery.namespace=SCrM-Test -Dnacos.discovery.server-addr=127.0.0.1:8848

主类:com.zhuoyu.smartinsight.platform.PlatformApplication
