主从表演练之采购单

标签：

目录

一、数据库新建表

主表 tb_PO 明细表 tb_PODetail

tb_PO表SQL创建脚本

SQL 全选
CREATE TABLE [dbo].[tb_PO](
	[isid] [int] IDENTITY(1,1) NOT FOR REPLICATION NOT NULL,
	[DocNo] [varchar](20) NOT NULL,
	[DocDate] [date] NULL,
	[SupplierID] [varchar](20) NULL,
	[SupplierName] [nvarchar](50) NULL,
	[SupplierAddress] [nvarchar](200) NULL,
	[SupplierPhone] [varchar](50) NULL,
	[FromAddress] [nvarchar](200) NULL,
	[TotalAmount] [decimal](18, 2) NULL,
	[PayType] [varchar](10) NULL,
	[Remark] [nvarchar](200) NULL,
	[DocType] [int] NULL,
	[CreateUser] [varchar](20) NULL,
	[CreateDate] [datetime] NULL,
	[LastUpdateUser] [varchar](20) NULL,
	[LastUpdateDate] [datetime] NULL,
 CONSTRAINT [PK_TB_PO] PRIMARY KEY CLUSTERED
(
	[DocNo] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'自增列' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'isid'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'单据编号' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'DocNo'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'单据日期' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'DocDate'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'供应商编号' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'SupplierID'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'供应商名称' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'SupplierName'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'供应商地址' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'SupplierAddress'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'联系电话' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'SupplierPhone'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'提货地址' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'FromAddress'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'总金额' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'TotalAmount'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'结算方式' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'PayType'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'备注' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'Remark'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'状态 0：挂起 1：提交 -1：废弃' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'DocType'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'创建人' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'CreateUser'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'创建时间' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'CreateDate'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'最后修改人' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'LastUpdateUser'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'最后修改时间' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO', @level2type=N'COLUMN',@level2name=N'LastUpdateDate'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'采购入库单' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PO'
GO
用技术成就未来
YES开发框架网 www.yesdotnet.com

tb_PODetail表创建SQL脚本

SQL 全选
CREATE TABLE [dbo].[tb_PODetail](
	[isid] [int] IDENTITY(1,1) NOT FOR REPLICATION NOT NULL,
	[DocNo] [varchar](20) NULL,
	[ProductID] [varchar](20) NULL,
	[JZS] [int] NULL,
	[Unit] [varchar](10) NULL,
	[SPID] [varchar](20) NULL,
	[Qty] [decimal](18, 2) NULL,
	[Price] [decimal](18, 2) NULL,
	[Amount] [decimal](18, 2) NULL,
	[Remark] [nvarchar](200) NULL,
	[CreateUser] [varchar](20) NULL,
	[CreateDate] [datetime] NULL,
	[LastUpdateUser] [varchar](20) NULL,
	[LastUpdateDate] [datetime] NULL,
 CONSTRAINT [PK_TB_PODETAIL] PRIMARY KEY CLUSTERED
(
	[isid] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'自增列' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'isid'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'单据编号' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'DocNo'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'产品编号' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'ProductID'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'件/支数' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'JZS'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'单位' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'Unit'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'仓位' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'SPID'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'数量' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'Qty'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'单价' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'Price'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'金额' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'Amount'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'备注' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'Remark'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'创建人' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'CreateUser'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'创建时间' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'CreateDate'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'最后修改人' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'LastUpdateUser'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'最后修改时间' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail', @level2type=N'COLUMN',@level2name=N'LastUpdateDate'
GO

EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'采购入库明细' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'tb_PODetail'
GO
用技术成就未来
YES开发框架网 www.yesdotnet.com

二、代码生成器生成代码

1）生成Model代码

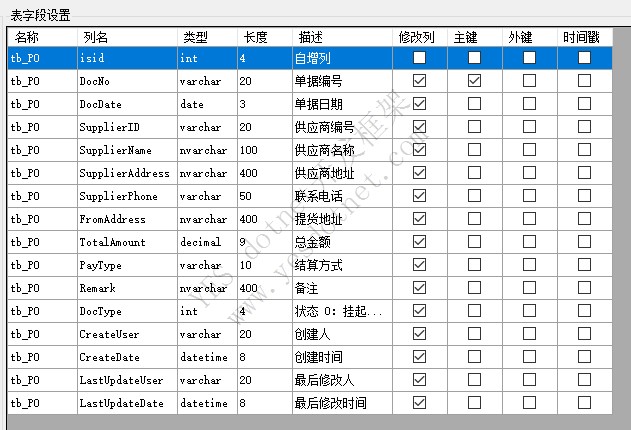

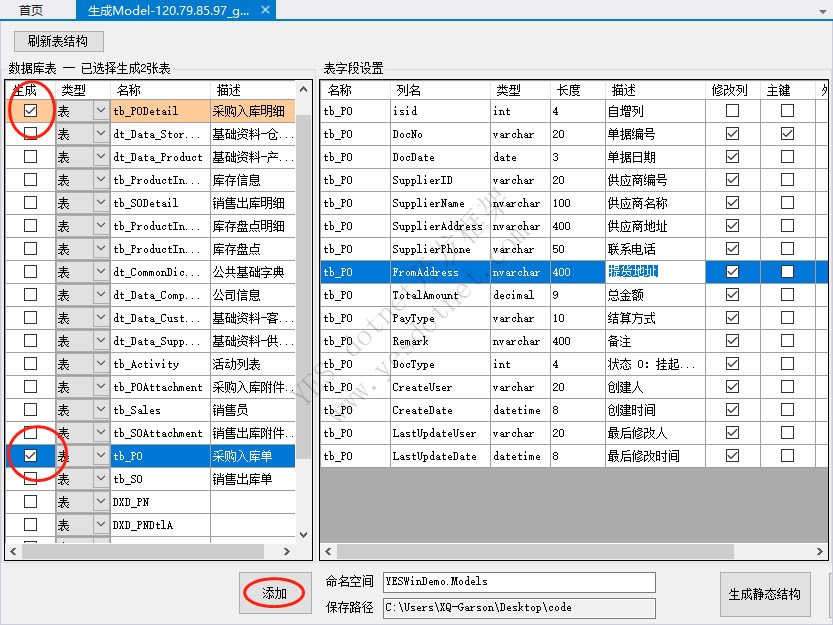

tb_PO设置

主从表演练之采购单

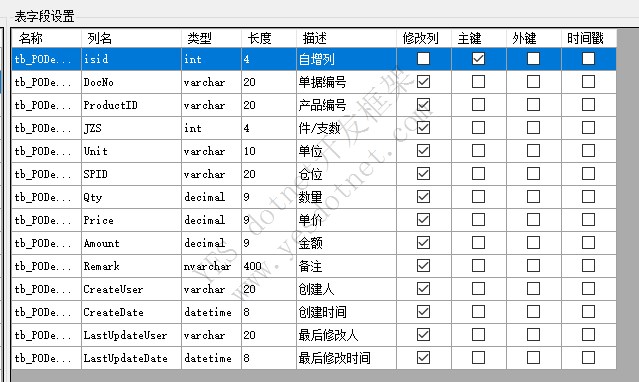

tb_PODetail设置

主从表演练之采购单



选中要生成Model的表，然后点击下方的 添加 按钮，就能标记表为生成状态(打勾)

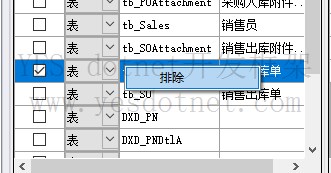

如果选错了，或者要取消表生成标记，右键表，弹出菜单中选择排除即可

主从表演练之采购单

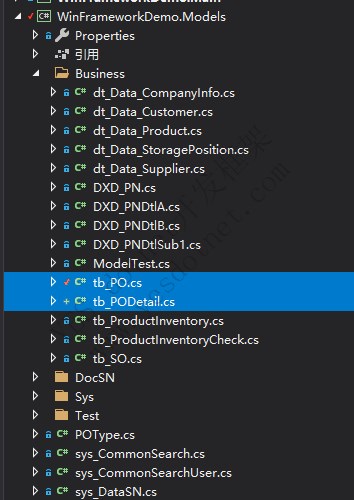

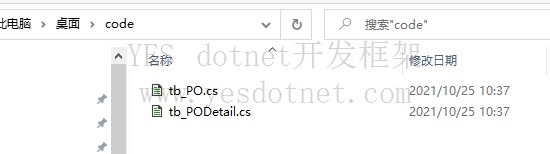

生成的Model层代码文件

主从表演练之采购单

复制文件到项目Model层中

主从表演练之采购单

2）生成功能窗体

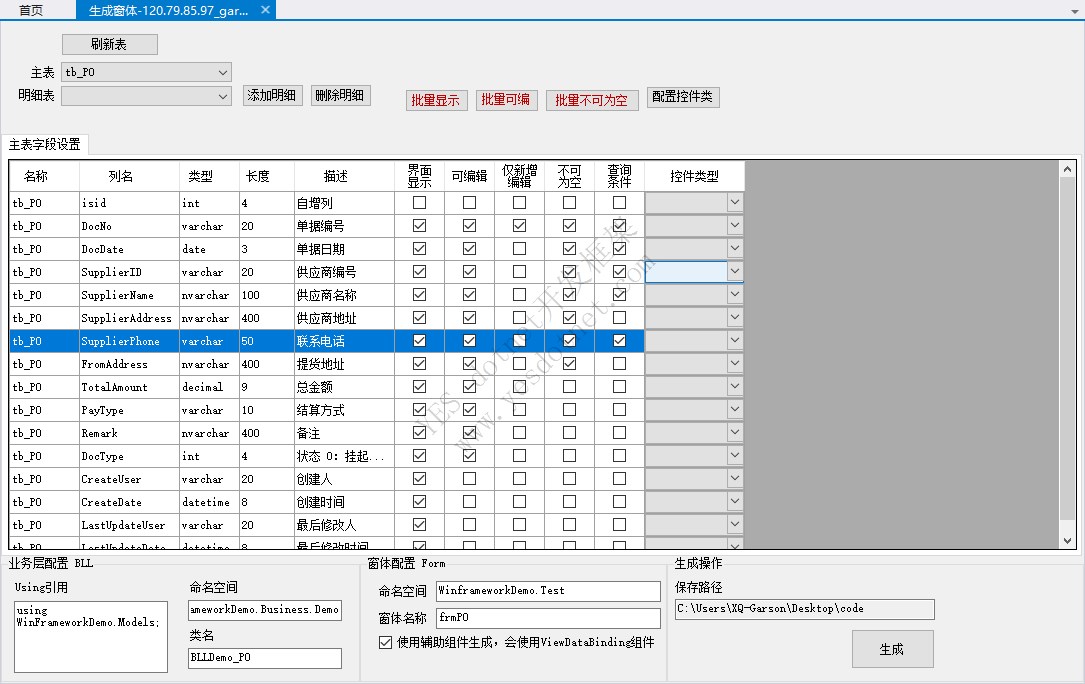

设置主表 选择 tb_PO

配置如下

主从表演练之采购单

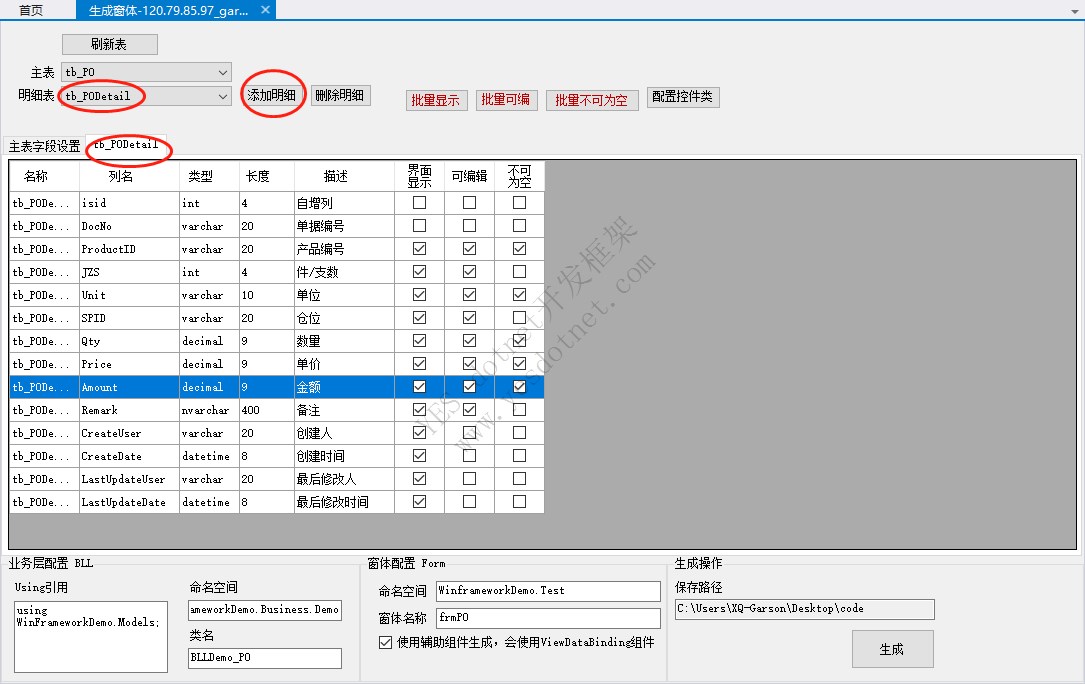

添加明细表 选择 tb_PODetail ，然后选择添加明细按钮

明细表配置如下：

主从表演练之采购单

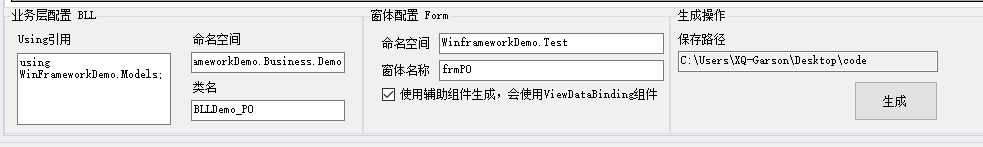

设置窗体信息:

配置如下：

主从表演练之采购单

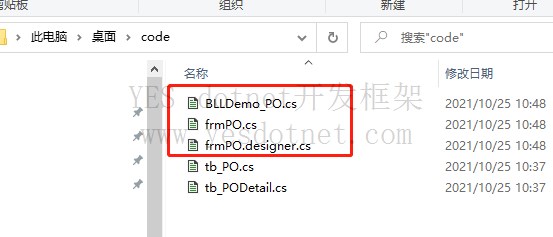

生成后得到3个文件：

主从表演练之采购单

BLLDemo_PO为窗体业务bll层代码

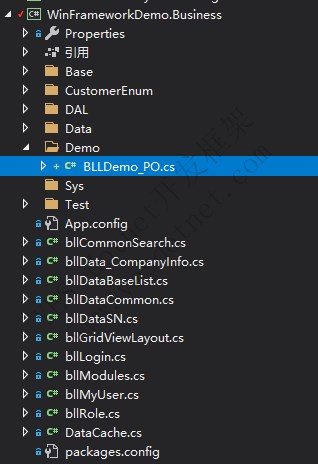

复制bll层代码到项目 WinFrameworkDemo.Business 中

主从表演练之采购单

复制窗体代码：frmPO.cs 和 frmPO.designer.cs 到项目 WinframeworkDemo.Test 中

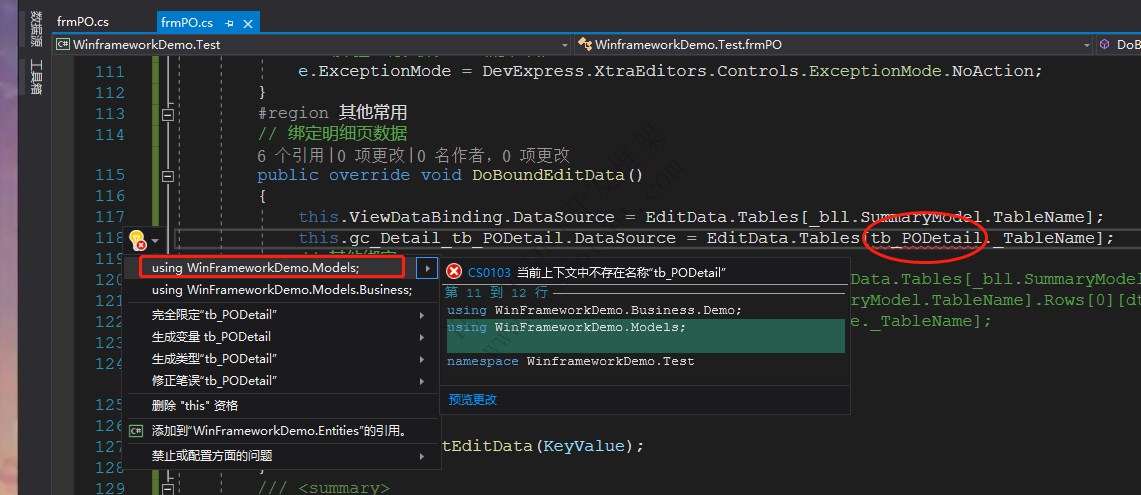

如果出现报错，添加缺失的命名空间即可

主从表演练之采购单

三、功能注册

修改 WinframeworkDemo.Test.Management.cs，添加功能 frmPo 的注册代码

C# 全选
namespace WinframeworkDemo.Test
{
    public class Management : WinFramework.Library.Module
    {
        public Management() : base("开发演示模块", "Module_Dictionary")
        {
            // 注册功能
            FunctionCollection.AddFunction(typeof(frmPO), "采购单", "Function_PO");
        }

    }
}
用技术成就未来
YES开发框架网 www.yesdotnet.com

四、运行项目，导入模块

现在运行项目，再业务模块中是看不到我们添加的功能的，需要导入

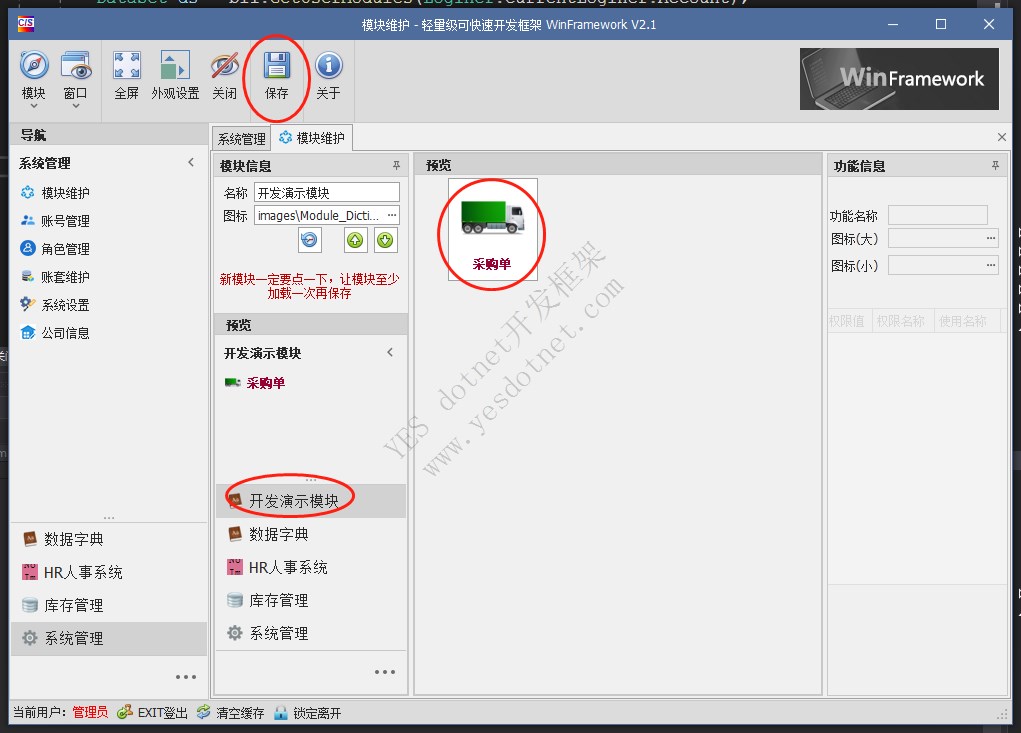

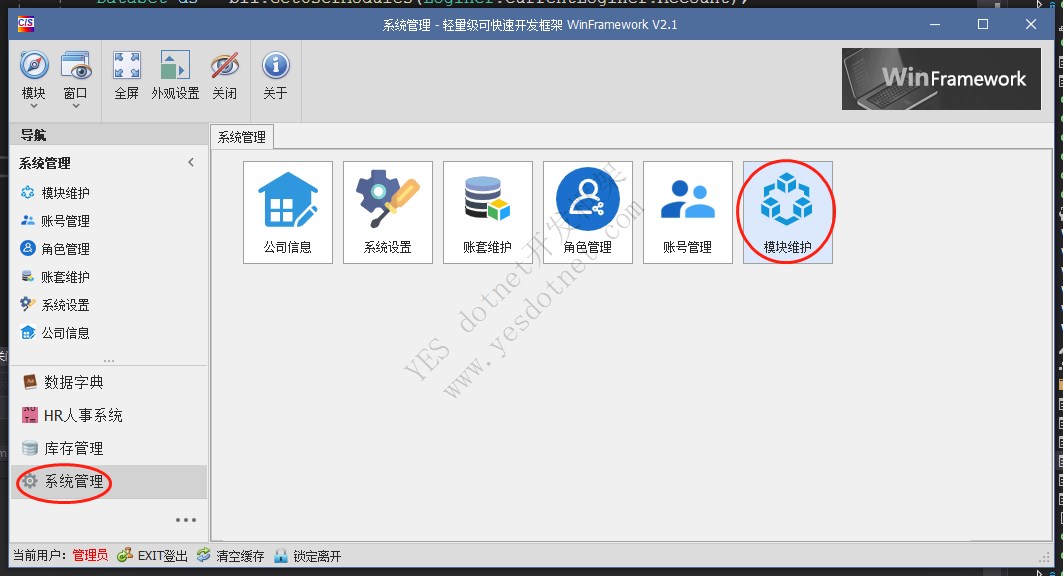

运行项目，系统管理 → 模块维护

主从表演练之采购单

看到我们新增的功能后，点击操作区域中的保存按钮

主从表演练之采购单

更新模块信息后，要 重新登录 系统

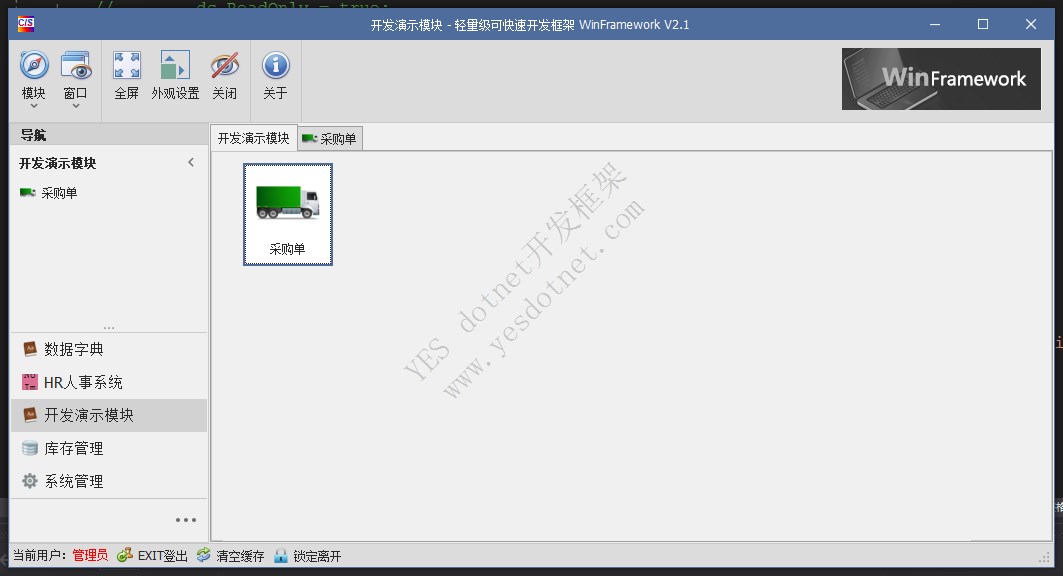

重新登录后，就看到了我们添加的功能

主从表演练之采购单

五、调整界面UI

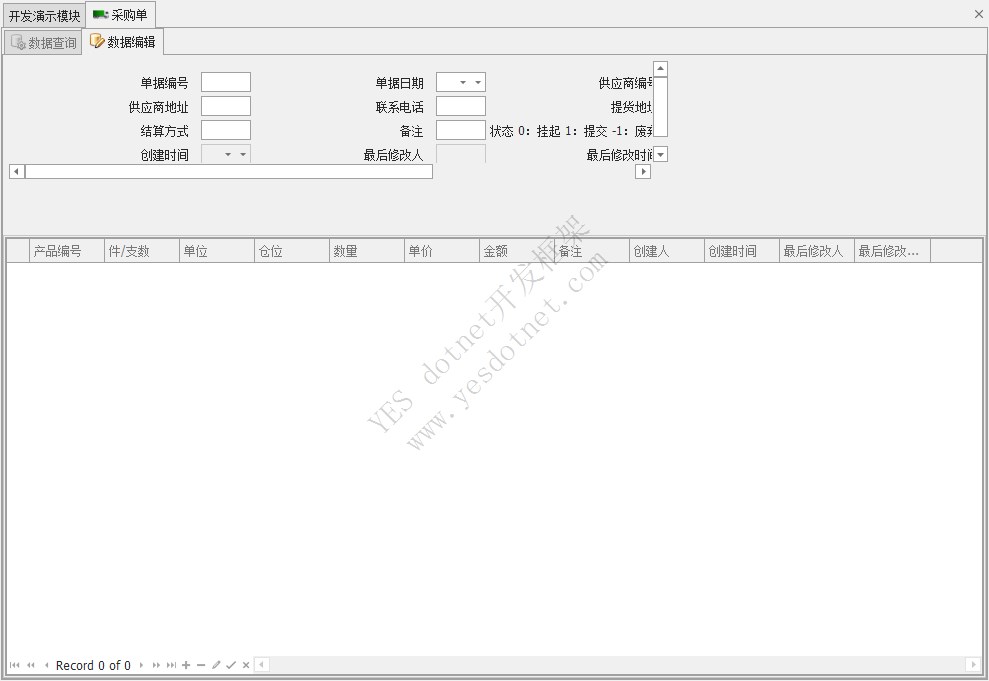

调整前，生成器生成的界面比较乱，尤其是编辑页面

主从表演练之采购单

我们需要手动调整一下

调整后：

主从表演练之采购单

六、测试增删改查功能

省略

版权声明：本文为YES开发框架网发布内容,转载请附上原文出处连接
